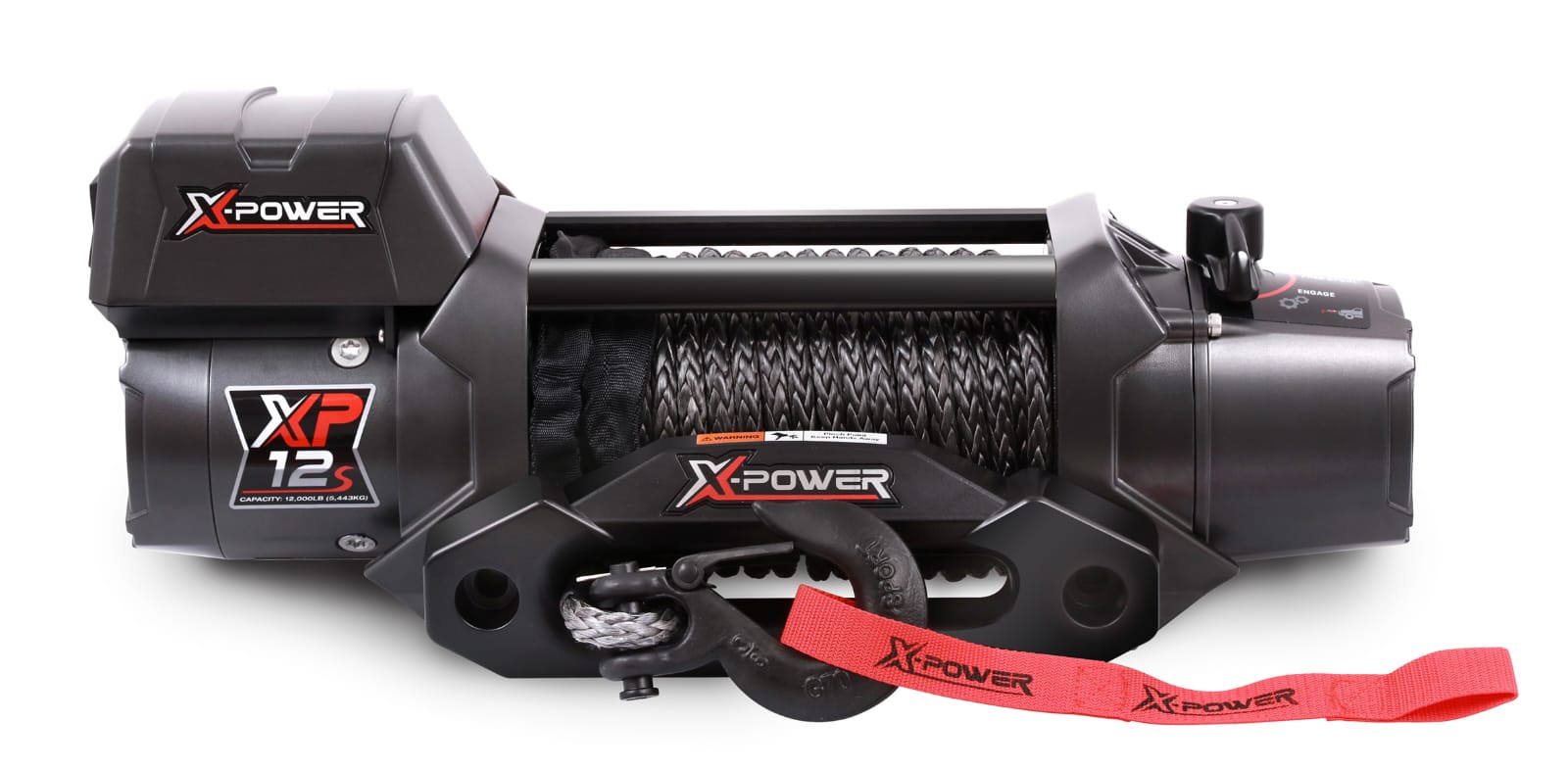

X-Power electric winches are designed in the USA. We stand for unbeatable performance. Our products are based on a long history of heavy duty durable production.
Rugged and Reliable 3-Stage Planetary Gear system for lasting performance
High Torque 125mm Series Wound Motor For Superior Winching Power & Superior Speed at 100% Loaded Capacity .
USA Patented Gear Housing With Duel Disk Brake Provides Ultimate Load Control and Safety.
Large 70mm (2.75 in) Winch Drum to minimize stress on rope.
Brake Located in Gear Housing keeps Drum cool during pulls, Avoiding excessive Heat and Rope damage.
Fully Sealed to Keep Water and dirt out and lubrication in- IP68 Standard.
Available in Integrated and Non-Integrated models with rotatable gear housing for a better fit to your vehicle.
Relocatable Control pack on Non-Integrated Models.
Remote Control can be used as Corded Remote or Wireless Remote.
Remote Control has Led Flashlight and USB charging so it can be used any time.
Remote Control provides Overload and Low Battery Voltage information to user.
>1200 times working life
Limited Lifetime Warranty For Gears. 7 Years Warranty For Electrical
Condition Apply
Technical Specification
Rated Single Line Pull : 12000Ib (5454kg)
Motor : 12V DC 7.0 HP Series Wound
Gear Train : 3 -Stage Planetary
Gear Ratio : 242 :1
Free spool clutch :Locking Ring Gear
Brake : Automatic Duel Disk
Drum (Dia .XL) : 2.75" x 8.8" (70mm X 223mm)
Clevis Hook : 3/8", Clevis with Spring -Loaded Safety Latch
