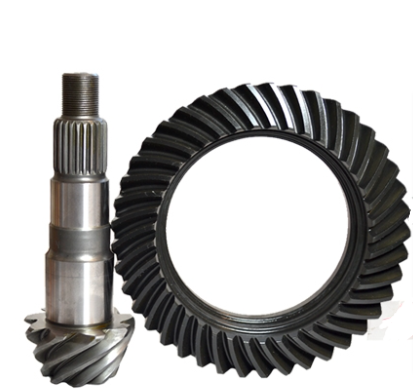

Nitro Ring and Pinion Gear Sets D30JK-456-NG Dana 30 frontJeep Wrangler JK 4.56 Gears

• Differential:	Dana Model 30-JK
  Gear Ratio:	4.56
  Tooth Count:	41/9
  Pinion Splines:	24
  Ring Gear Bolts:	7/16", 10 (not included)
  Manufacturer:	Nitro Gear & Axle

Manufacturer  Code:

D30JK-456-NG

NO WARRANTY

New Gear Break-In Guidelines

All new gear sets require a break-in period to prevent overheating damage. Overloading or Overheating will break down the gear oil, which will cause the ring and pinion to fail.

• Avoid heavy accelerating during the break in process
• Keep the vehicle under 60 MPH for the first 100 miles
• Drive 15 to 20 miles, stop let differential cool before proceeding
• Drive at least 500 miles before towing. First towing should be less than 15 miles, then let cool before proceeding
• Change Gear Oil after the 500 mile break-in, this removes metal particles and phosphate coating from the gear set during the break-in period.
• Improper Break-in can be determined through Inspection and wil Void Warranty Claims

Gear Oil
Recommended Gear Oil is an 80W-90/85W-140, Non-Synthetic, GL5 grade or Higher, Name Brand Oil.
