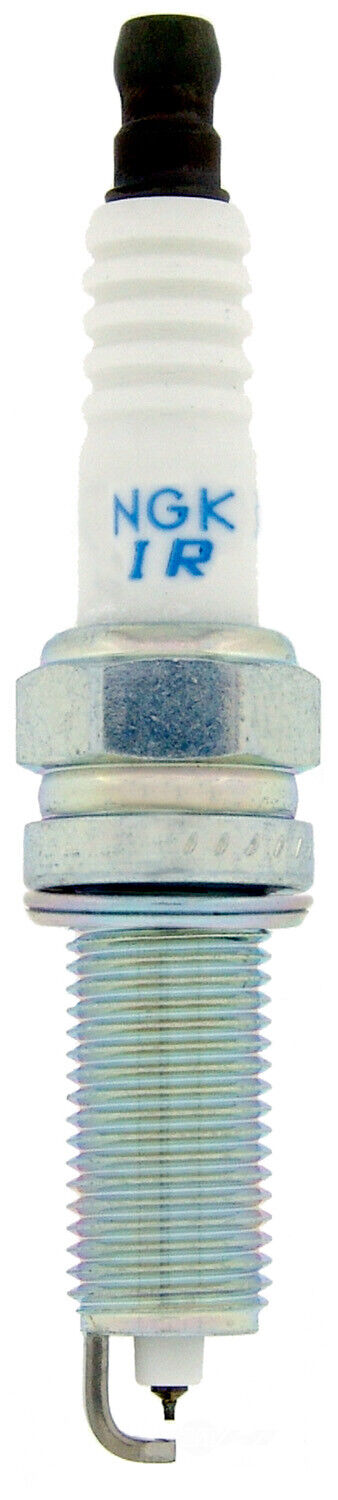

NGK Laser Iridium spark plugs provide superior ignitability and long service life. Fine wire iridium tipped center electrode and fine wire platinum tipped ground electrode ensures slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage
Shell
Thread Diameter : 12mm
Thread Pitch : 1.25mm
Seat Type : Gasket
Reach : 26.5mm (1.04")
Hex Size : 5/8" (16mm)

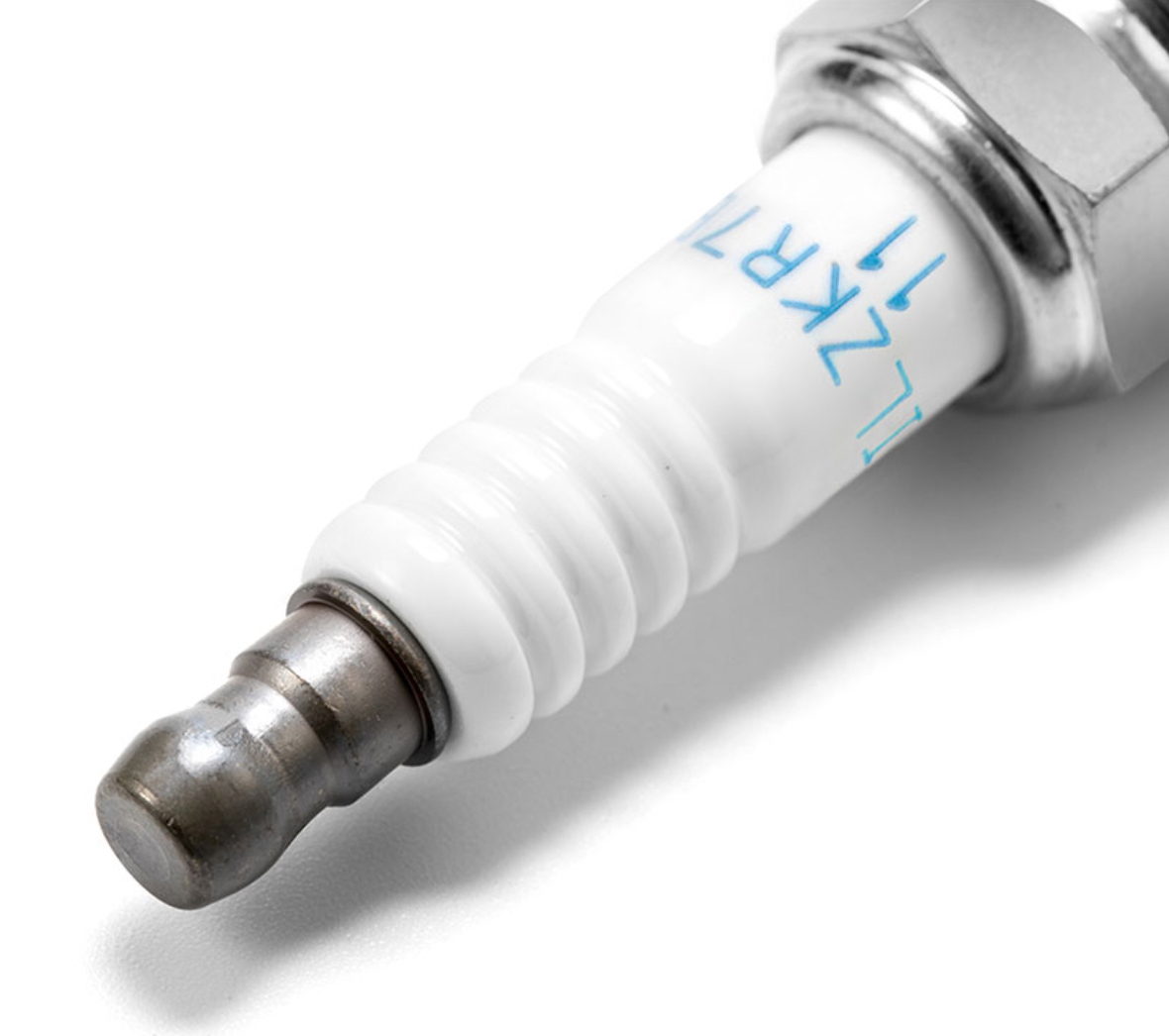

Terminal Type : Solid
Overall Height : ISO
Gap : .043" (1.1mm)

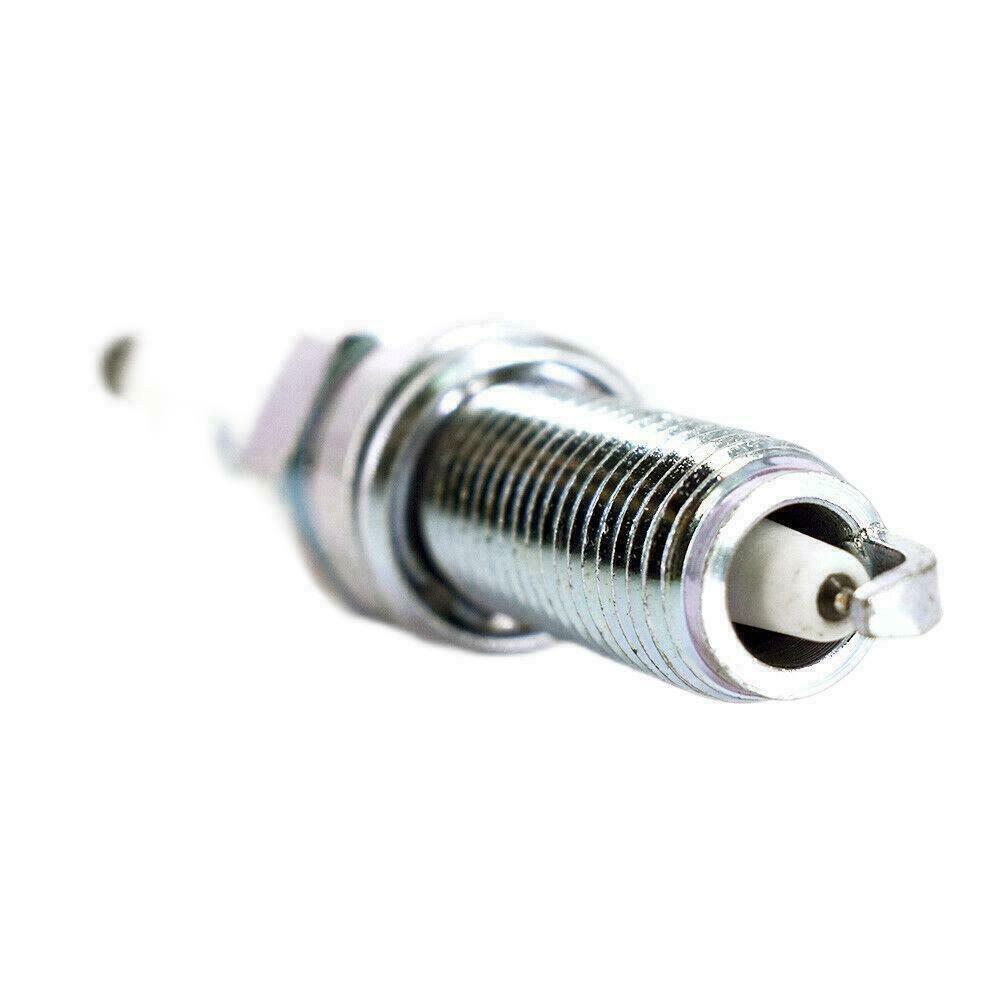

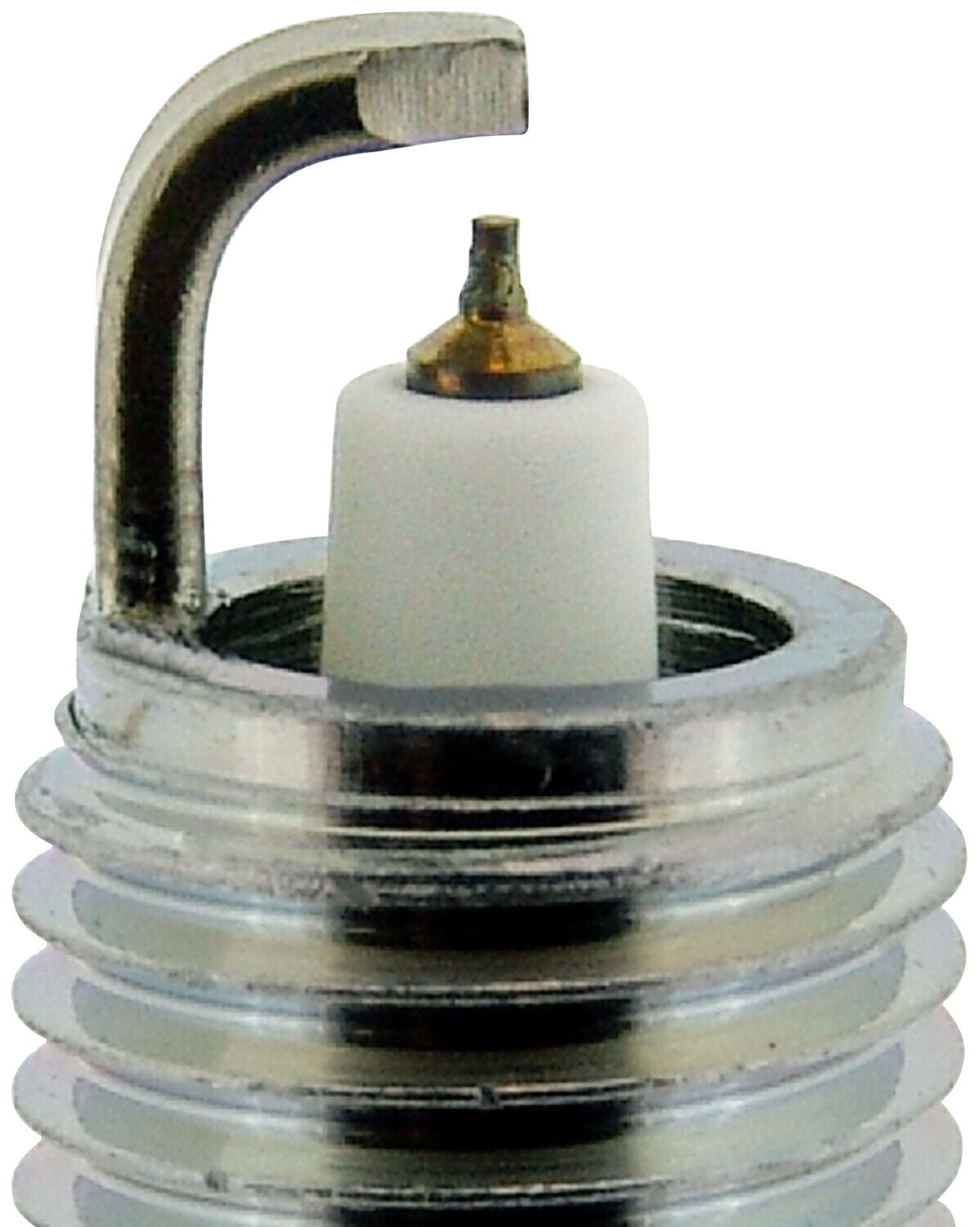

Center Electrode
Material : Iridium
Type : Fine Wire
Size : 0.6mm
Projection : Extended Projection
Ground Electrode
Material : Platinum
Type : Square
Shape : Taper Cut
Quantity : 1
Specifications
Resistor : Yes
Resistor Value : 5k Ohm
Heat Range : 7
Torque Specs : Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
