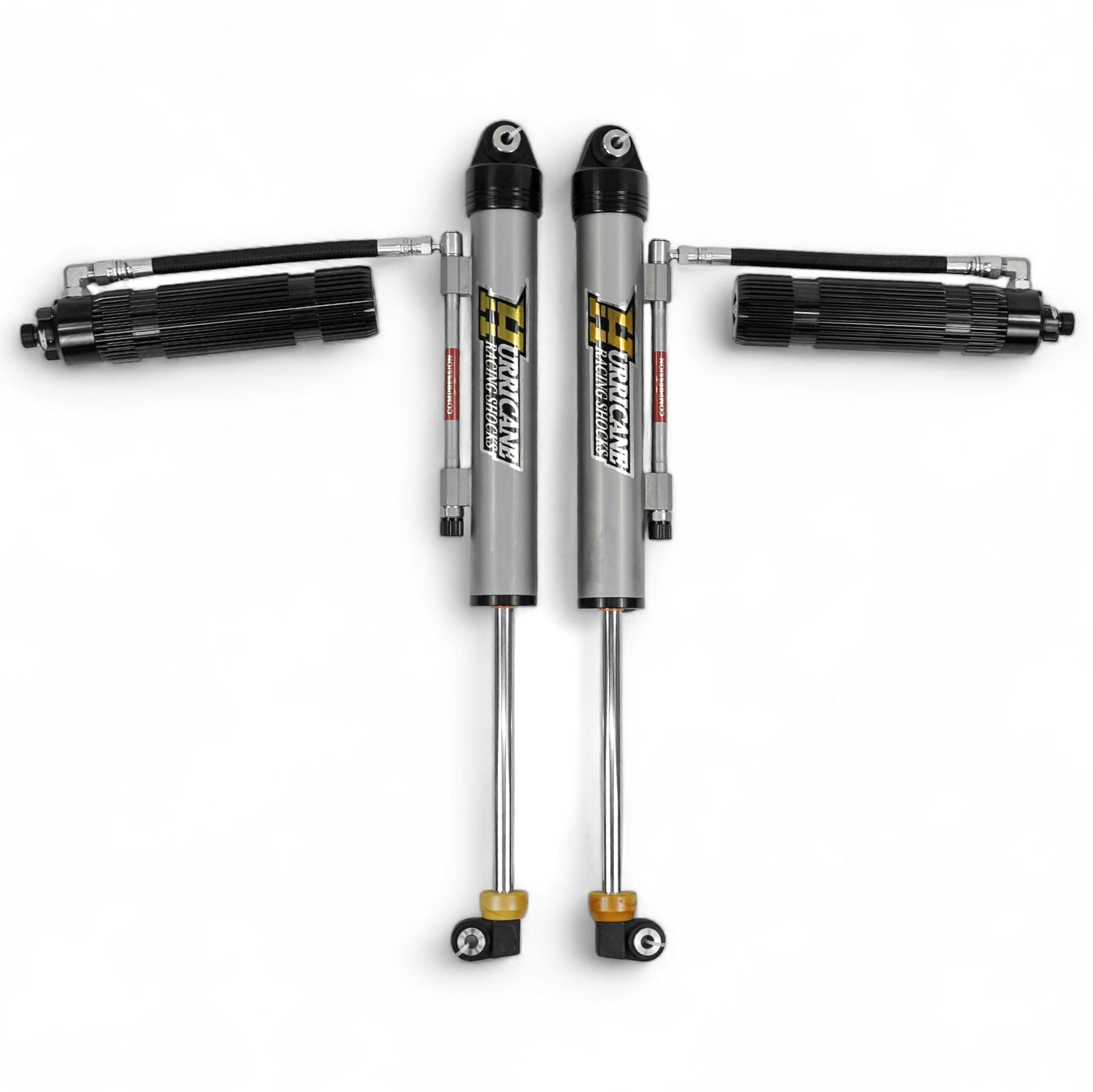

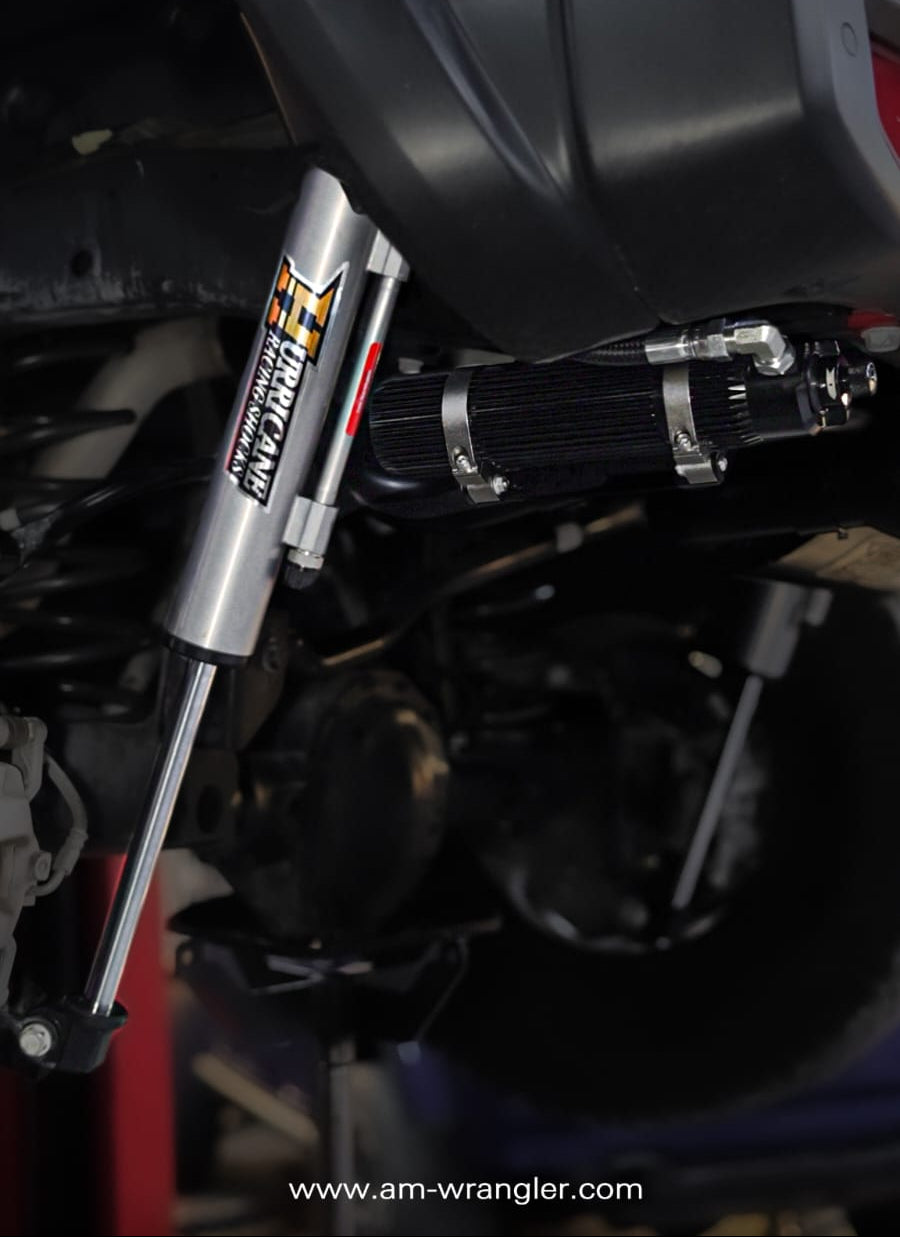

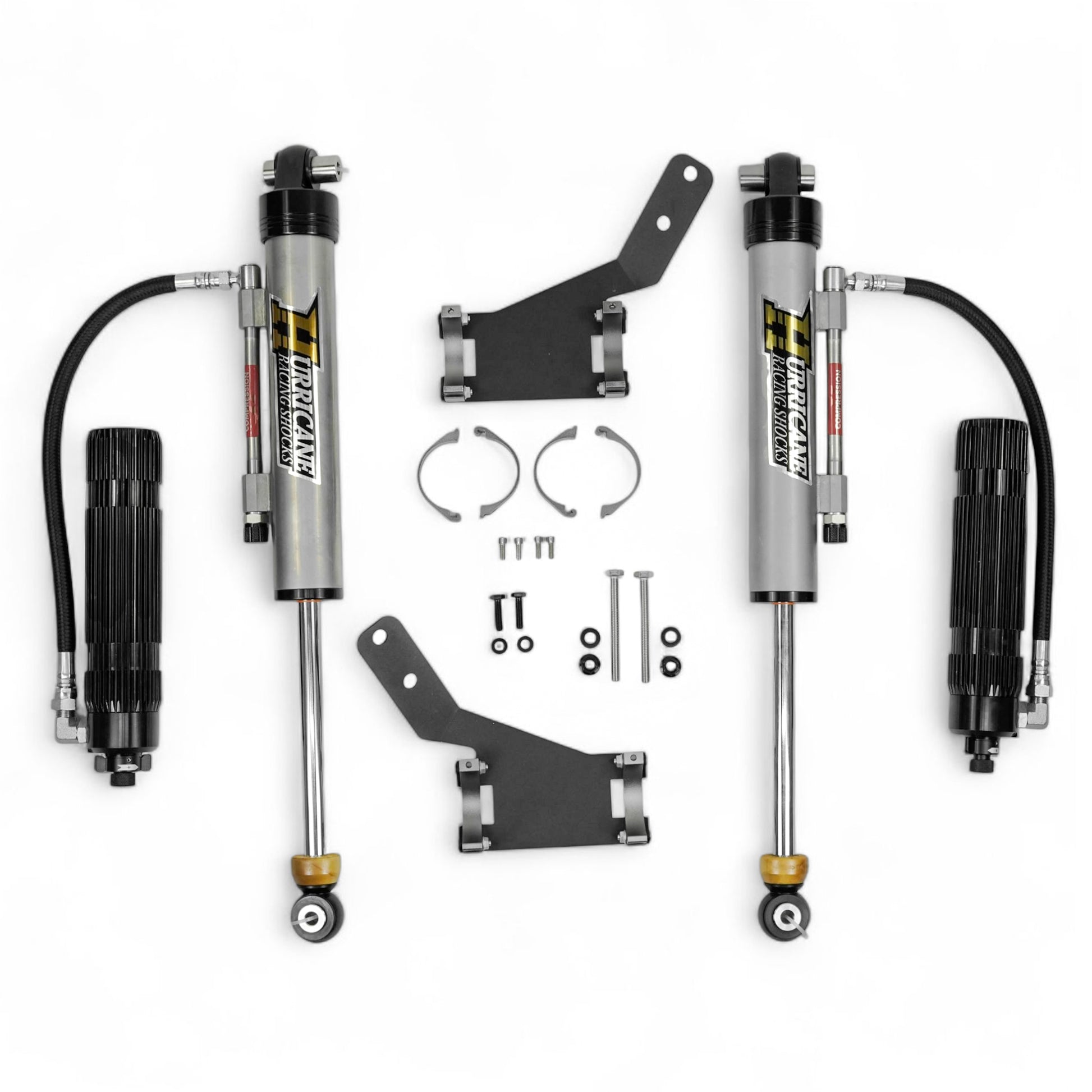

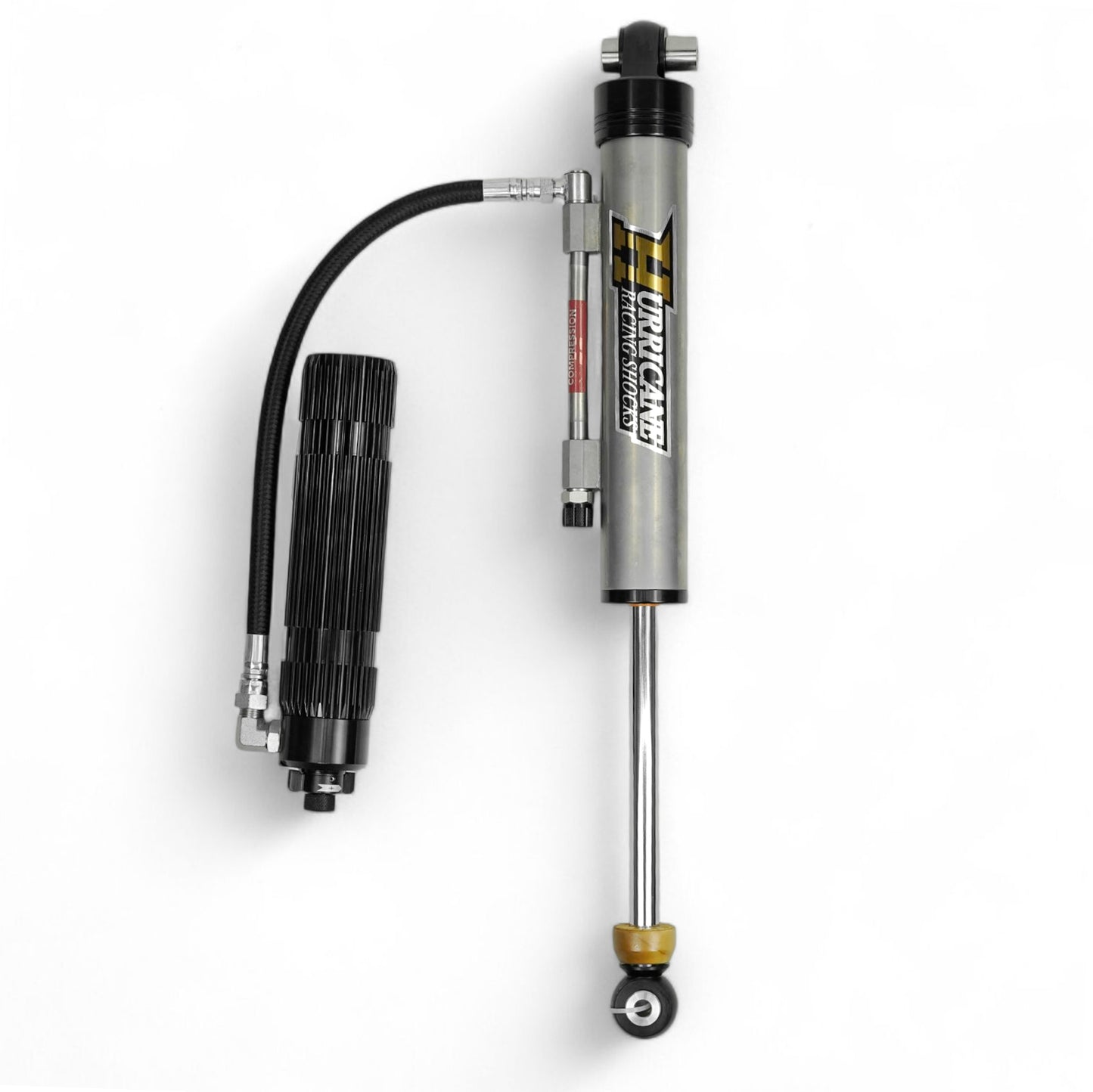

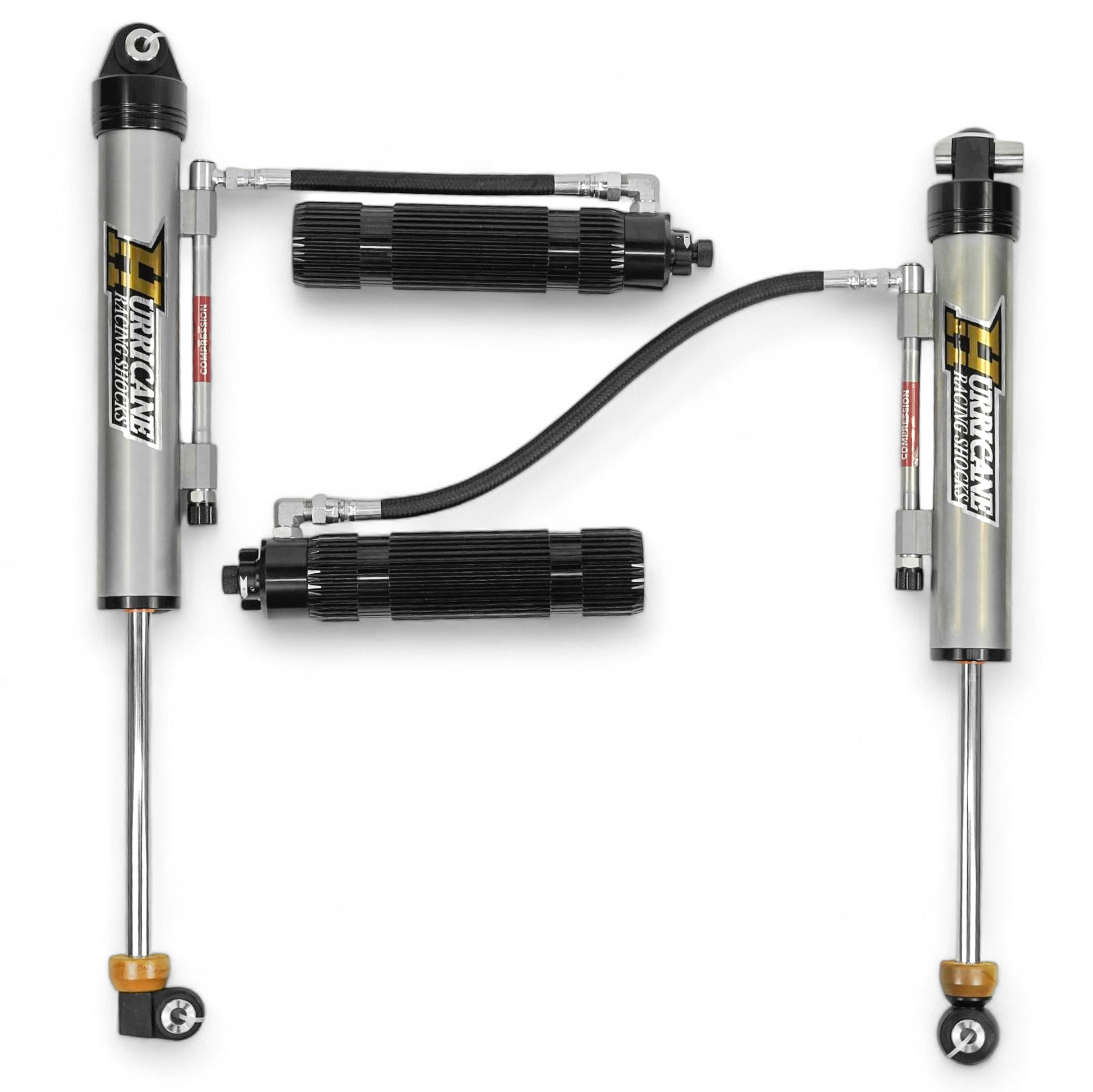

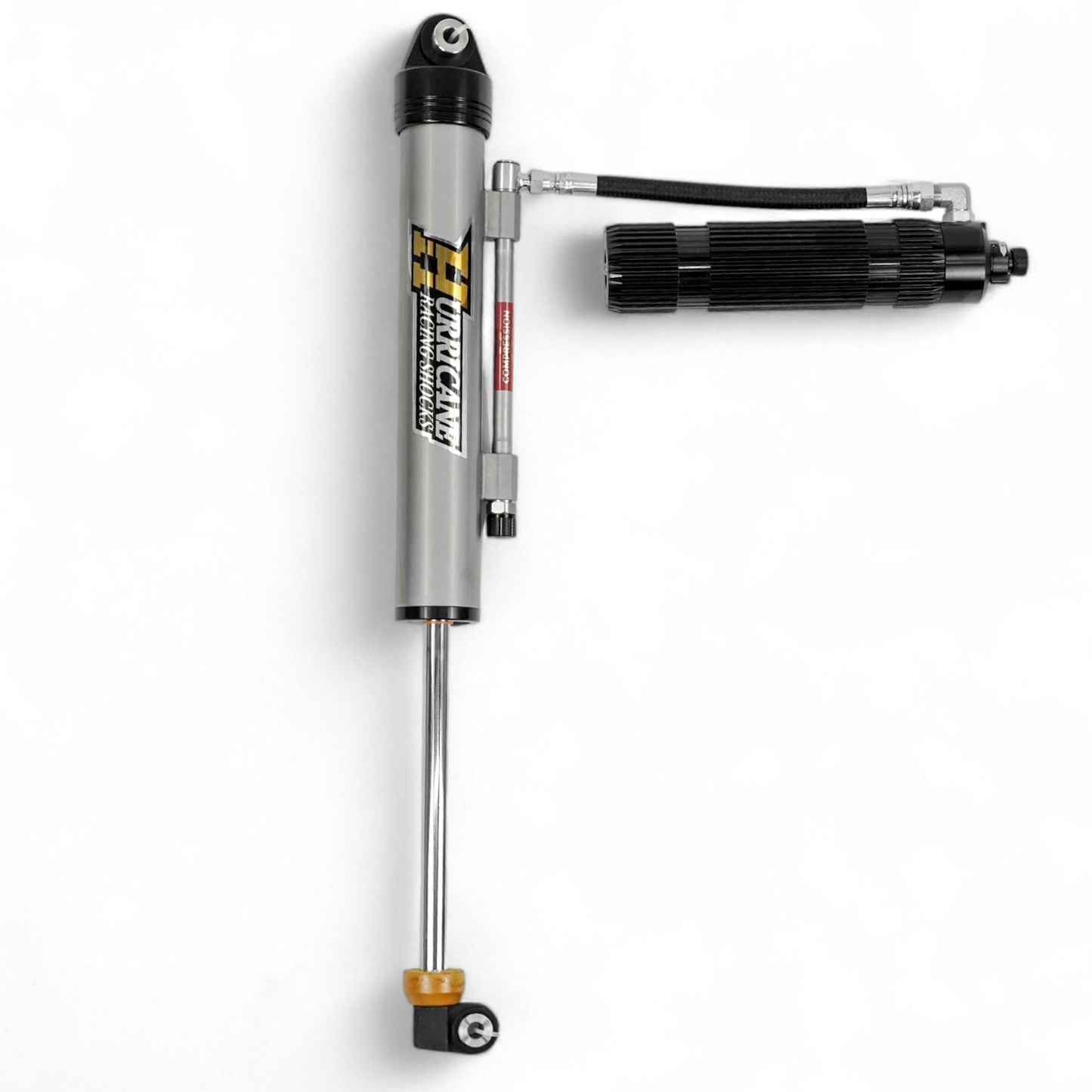

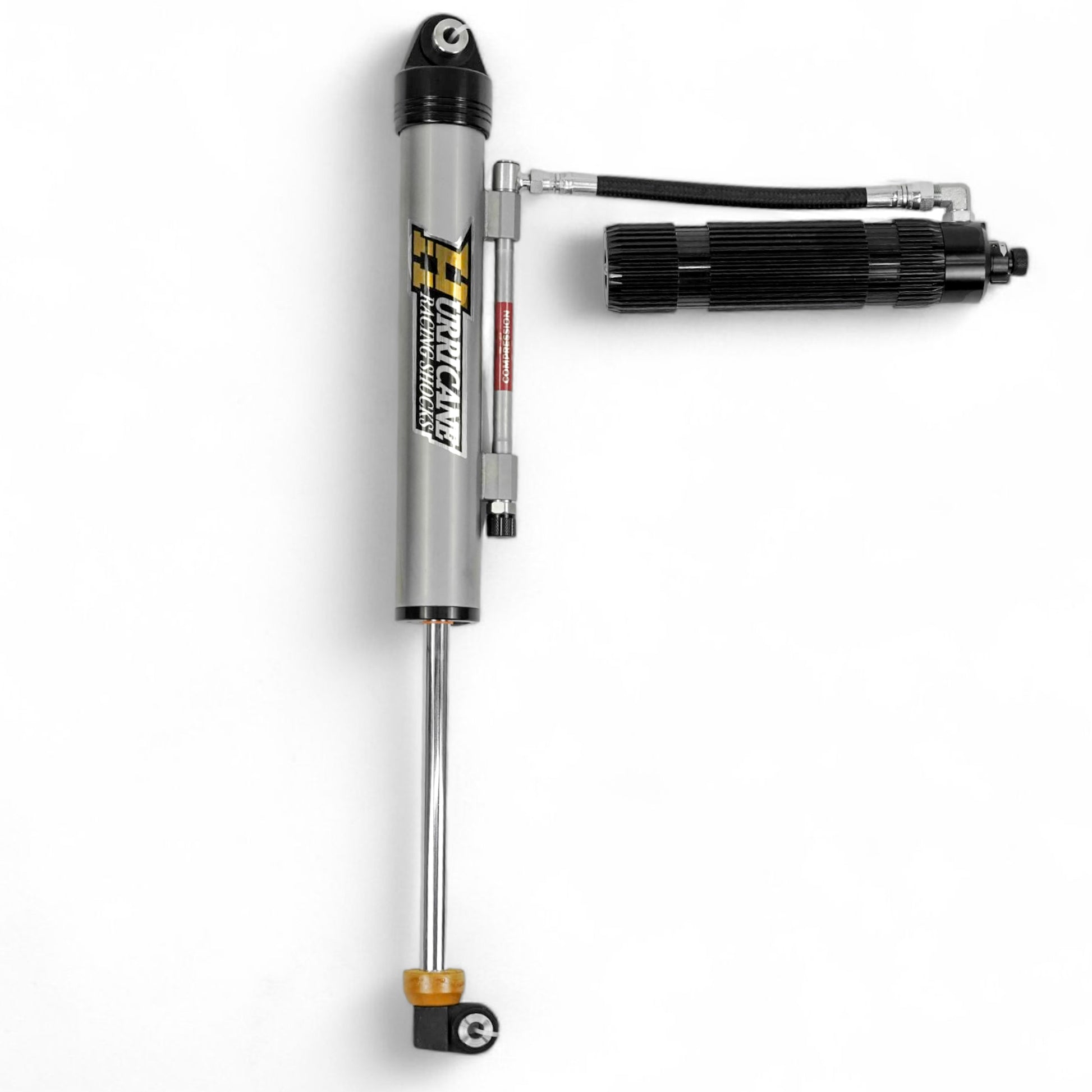

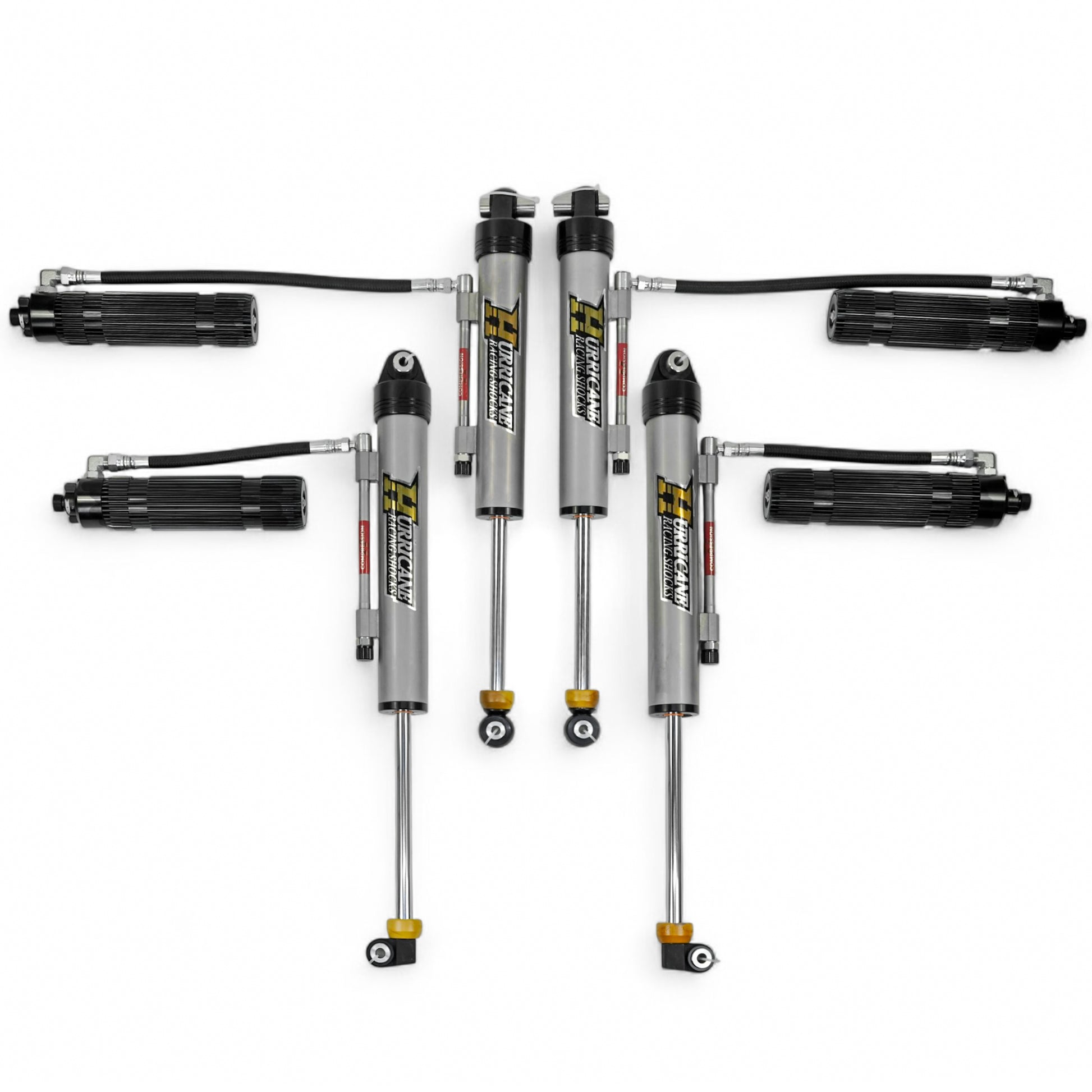

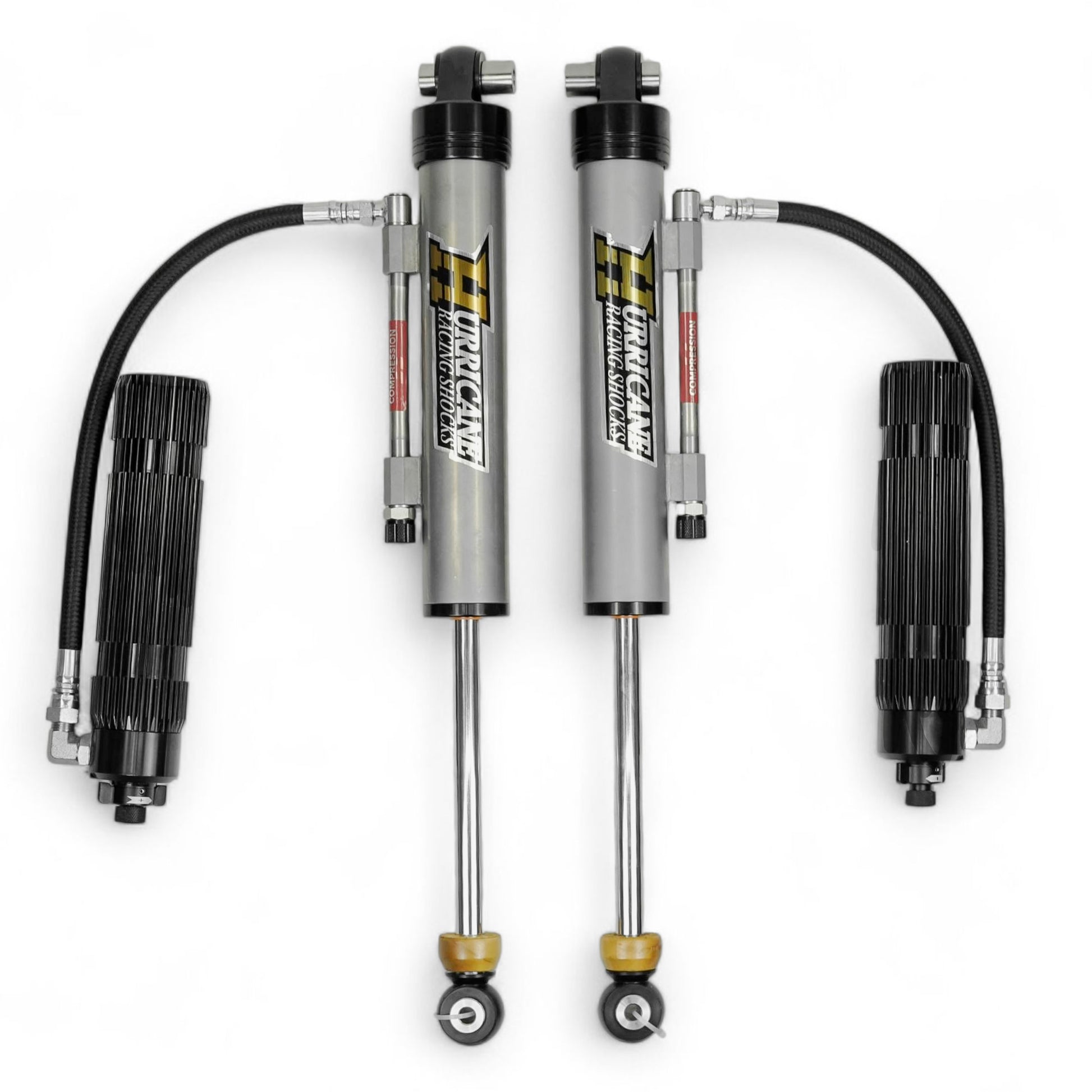

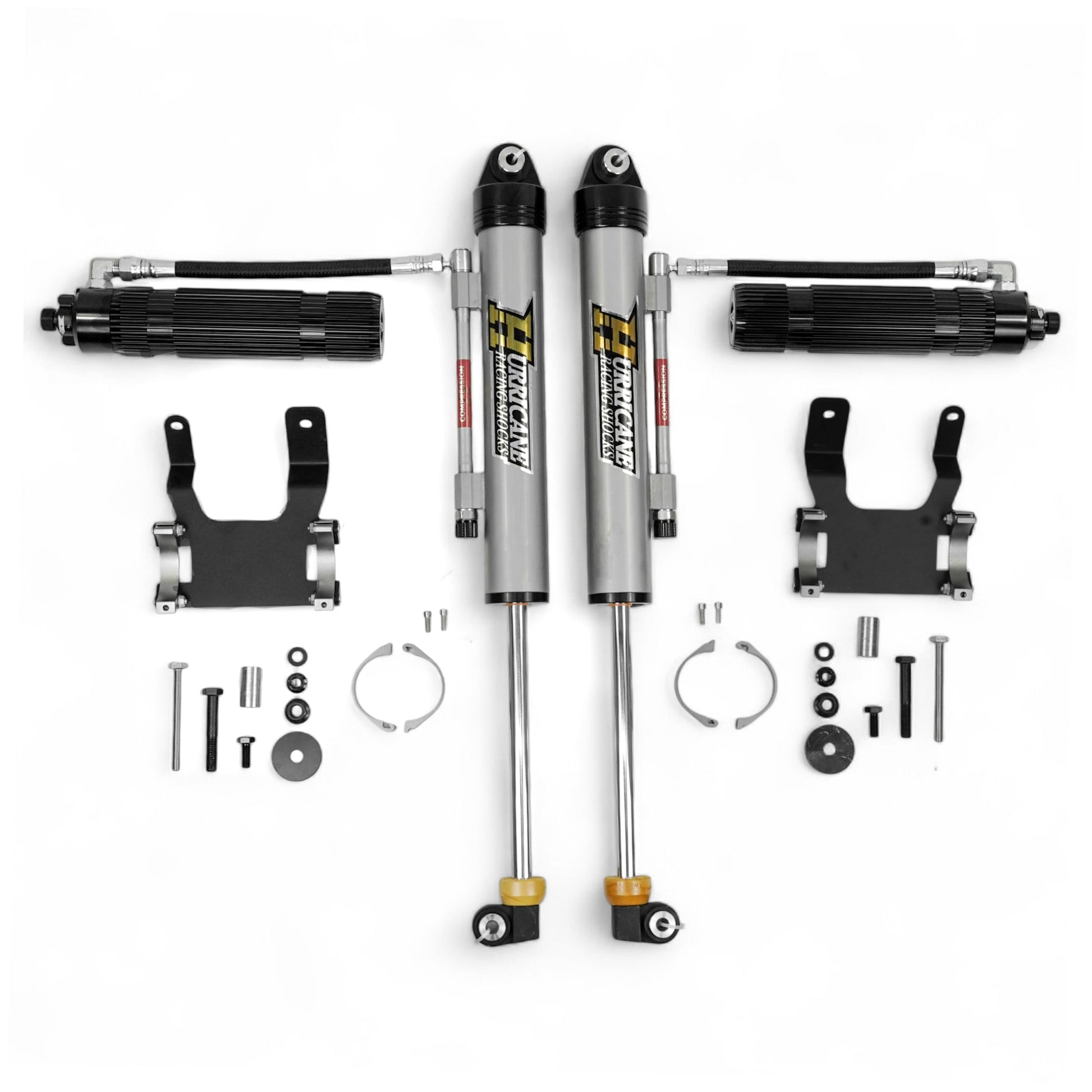

Hurricane Racing Extreme Series 2.5", Single Tube Bypass Shocks with Remote Reservoir for Jeep Wrangler JL,JT & 392

Our Hurricane Racing 2.5” Single Bypass Shocks are for the intermediate level driver. If you're a regular off-road enthusiast looking for something better than your average 2.5 adjustable shocks, then you are in for a treat. Our Hurricane Racing Shocks 2.5" Single Bypass are a serious upgrade to your Jeep. Why? These shocks provide you with reduced harshness by adding a single external bypass tube which allow semi free flow around the piston.

Product Specifications:

Body: 2.5" size, Smooth bore, Clear coated, Zinc Plated Stainless Steel Body
Shaft: 22mm hard chrome plated 4130 steel
Piston: Race-developed, High-flow piston design, Super strong hardened chrome piston rod engineered to handle the rigors of heavy loads and tough 4x4 touring.
Valving: Proprietary deburred valve shims
Seals: High temperature Viton seals
Oil: Hurricane Racing Shocks Oil Formulated ultimate performance in the harsh GCC climates
Vented Reservoir: Remote Reservoir for additional cooling, travel and tuning for high & low speed using adjustment knob
Mounting: Bearing and rubber selected
Gas Pressure: Adjustable based on the customers needs from 80-200psi
External free bleeding adjustment for best riding with 20 stages of compression adjustment

• In high-performance off-road suspension systems, specifically External Bypass Shocks, the production of a "clack-clack-clack" or metallic "clicking" sound is a standard byproduct of the hardware's internal logic. Unlike standard automotive shocks which are sealed and silent, bypass shocks use external pathways to manage fluid displacement.

• Hurricane Racing Shocks’ external bypass shocks use precision-engineered steel pistons in the bypass tube, offering improved damping control and longer-lasting durability for serious off-road use. This design is far superior to the Teflon pistons found in some other brands, which deliver lower performance and less durability.

• Why the Sound is a "Good Sign"

  The sound you are hearing is the mechanical confirmation that your suspension is actively adapting to the terrain. Here is why this sound supports the health of the shock:

  • Valve Seating: The "click" occurs when the check valve (a steel disc or ball) slams shut to prevent backflow. This ensures that damping force is being applied exactly where it was tuned to occur.

  • Fluid Routing: The noise confirms that hydraulic fluid is moving through the bypass tubes rather than being "choked" at the main piston. This is what allows for a plush ride over small bumps and bottom-out resistance on big hits.

  • System Integrity: A silent bypass shock often indicates a stuck check valve or internal bypass leakage, which would result in a significant loss of damping control and "wallowing" suspension.

At Hurricane Performance, we dedicate countess hours of real world research and development so that we can design suspension that can withstand incredible punishment and provides you with consistent performance. Best part is our research team does all the testing in the dunes of UAE. This has allowed us to build a product that is suitable for the harsh terrain and weather that we have in the GCC.

Our suspension comes standard with an 18 month warranty period. Our shocks are fully rebuildable and as the official distributor of Hurricane Performance, we carry all the necessary spare parts needed.
