REAR
- Part Number: 6BP-2ST-01

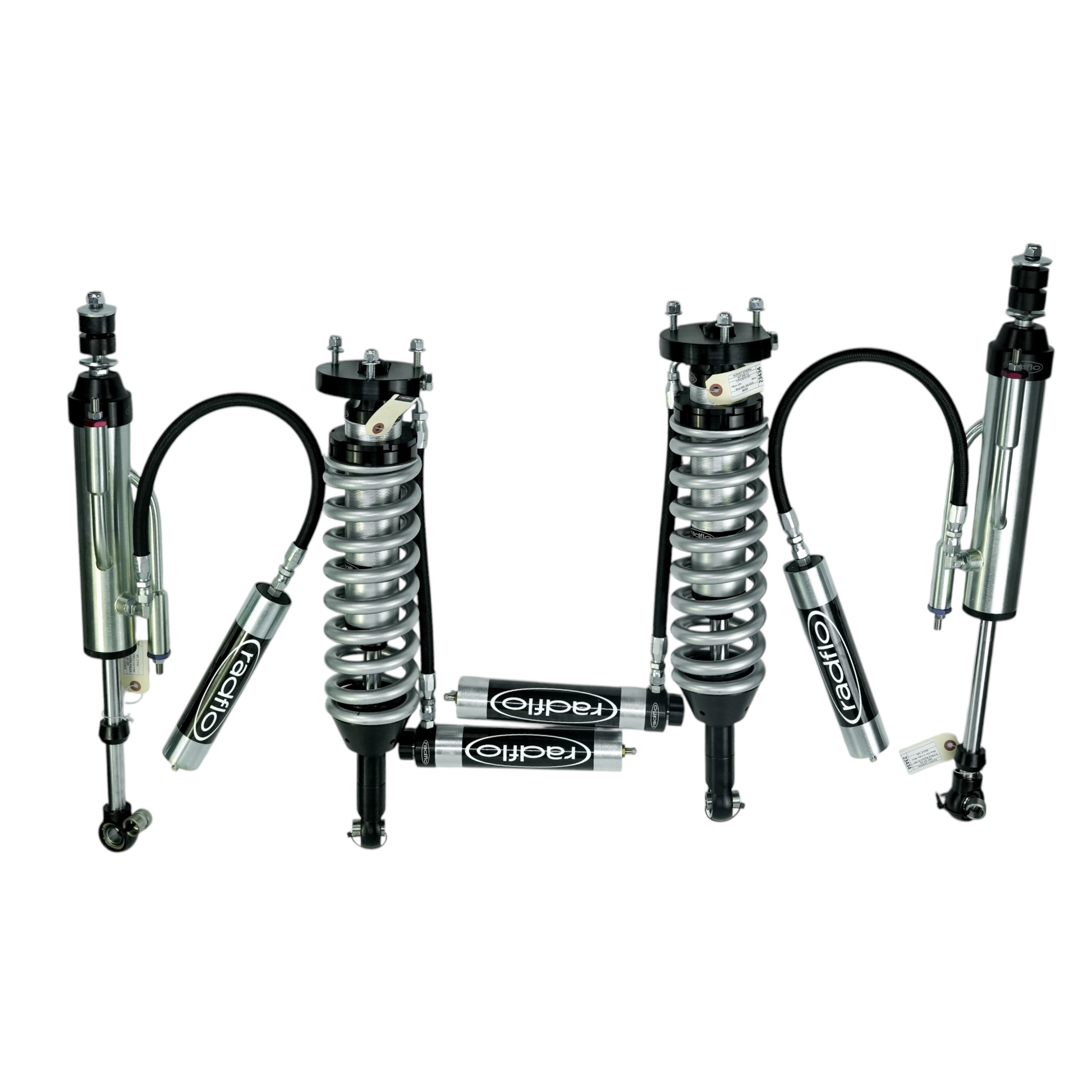

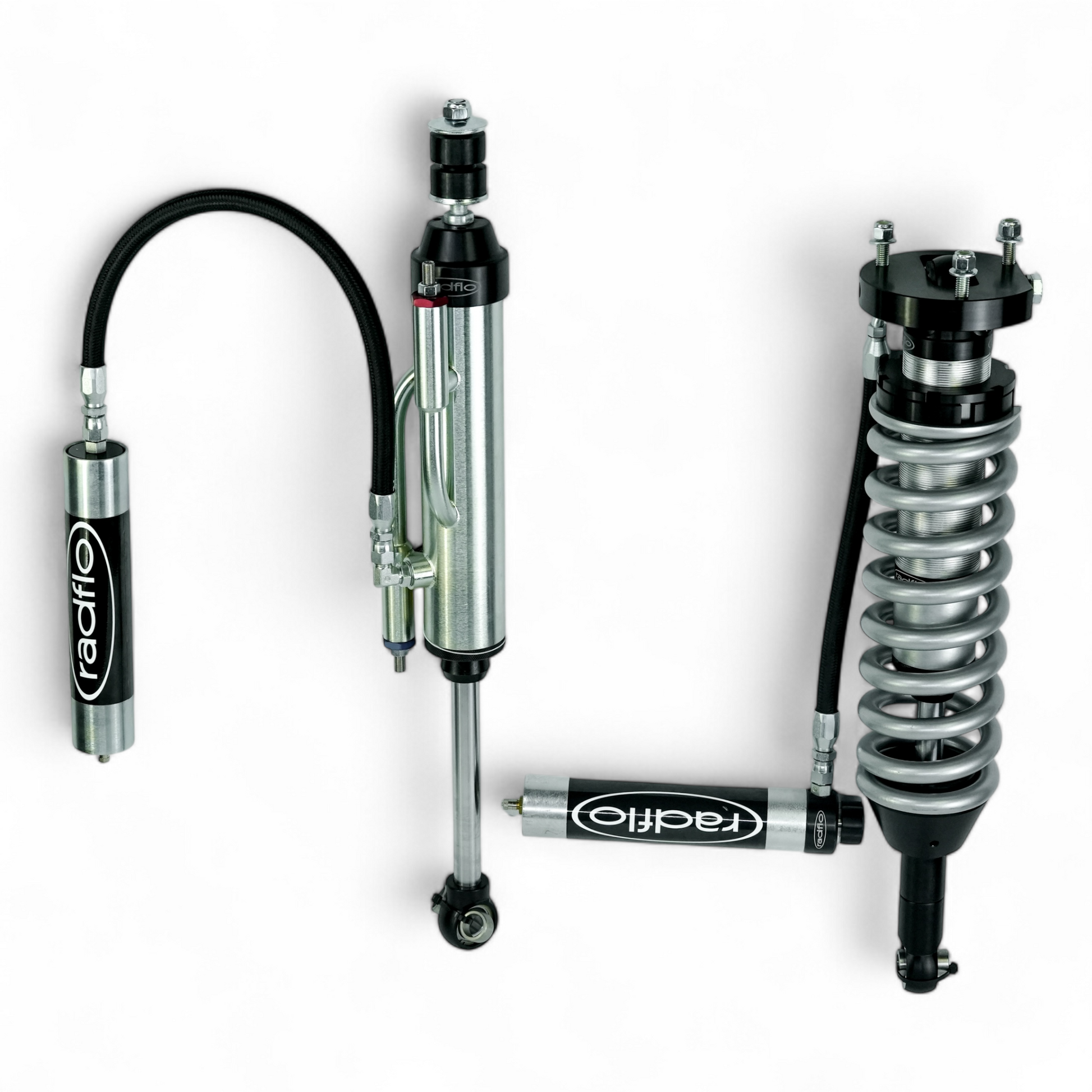

- Product Type: Off Road 2.5 Inch Diameter Rear 2 Tube Remote Reservoir For Total Chaos Mid Travel Kit – OE Replacement
- Year/Make/Model: 2007-2017 Toyota FJ Cruiser And 2007-2017 Toyota 4Runner
- Front/Rear App: Rear
- Bearing Size: 0.625 Inch
- Body Diameter: 2.5 Inch
- Body Material: SSID Alloy Steel Tube
- Body Finish: Clear Cadmium Plating
- Body Caps/Eyelets Material: CNC Machined 6061 Aluminum
- Body Caps/Eyelets Finish: Black Anodized
- Bypass Tubes: 2
- Mounting Hardware: Universal Spherical Bearing and Hardware
- Rod Material: Nitro Steel
- Rod Finish: Mirror Polished
- Rod Guide Material: CNC Machined Bronze
- Rod Guide Finish: PTFE Coating
- Piston Type: Radflo Aluminum Freeflo Racing Piston
- Seal Type: Combination Quad-Ring and Lip Seal (Rebuildable)
- Service Status: Consumer Or Factory Serviceable
- Valving Type: Velocity-Sensitive Deflective Disc
- Valving Tuning: Consumer or Factory Tunable
- Valving Adjustment: Self-Adjusting
- Oil Type: Radflo High-Temp Foam Resistant Suspension Fluid
- Pressurization: Nitrogen Gas
- Pressure Amount: Starting at 200psi Based On Location
| Weight | 48 lbs |
|---|---|
| Dimensions | 48 × 12 × 7 in |
| Reservoir Type |
Remote Reservoir |
| Universal |
No |
| Diameter |
2.5 Inch |
| Bearing Size |
0.625 Inch |
| Mount |
Universal Spherical Bearing And Hardware |
| Body Cap Eyelets |
CNC Machined 6061 Aluminum Black Anodizing |
| Body Style |
SSID Alloy Steel Tube |
| Bypass Tubes |
2 |
| Color I |
Black |
| Finish I |
Polished Clear Cadmium Plating |
| Oil |
Radflo High-Temp Foam Resistant Suspension Fluid |
| Piston |
Radflo Freeflo Racing Piston |
| Pressurization |
Nitrogen Gas |
| Rod |
Nitro Steel |
| Rod Finish |
Mirror Polished |
| Rod Guide |
PTFE Coating CNC Machined Bronze |
| Rod Material |
Nitro Steel |
| Seal |
Rebuildable Combination Quad Ring And Lip Seal |
| Service |
Consumer or factory serviceable |
| Shock Mount |
Universal Spherical Bearing And Hardware |
| Valving |
Velocity-Sensitive Deflective Disc, Self-Adjusting, Consumer Or Factory Tunable |
| Top |
Eye |
| Bottom |
Eye |
| Body Material |
SSID Alloy Steel |
| Body Cap Material |
6061 Aluminum |
| Body Cap Finish |
Anodized |
| Rod Guide Material |
Machined Bronze |
| Rod Guide Finish |
PTFE Coating |
| Piston Material |
Aluminum |
| Adjust Type |
Self-Adjusting |
| Tuning |
Consumer Or Factory Tunable |
| PSI |
Starting at 200 psi Based On Application |
