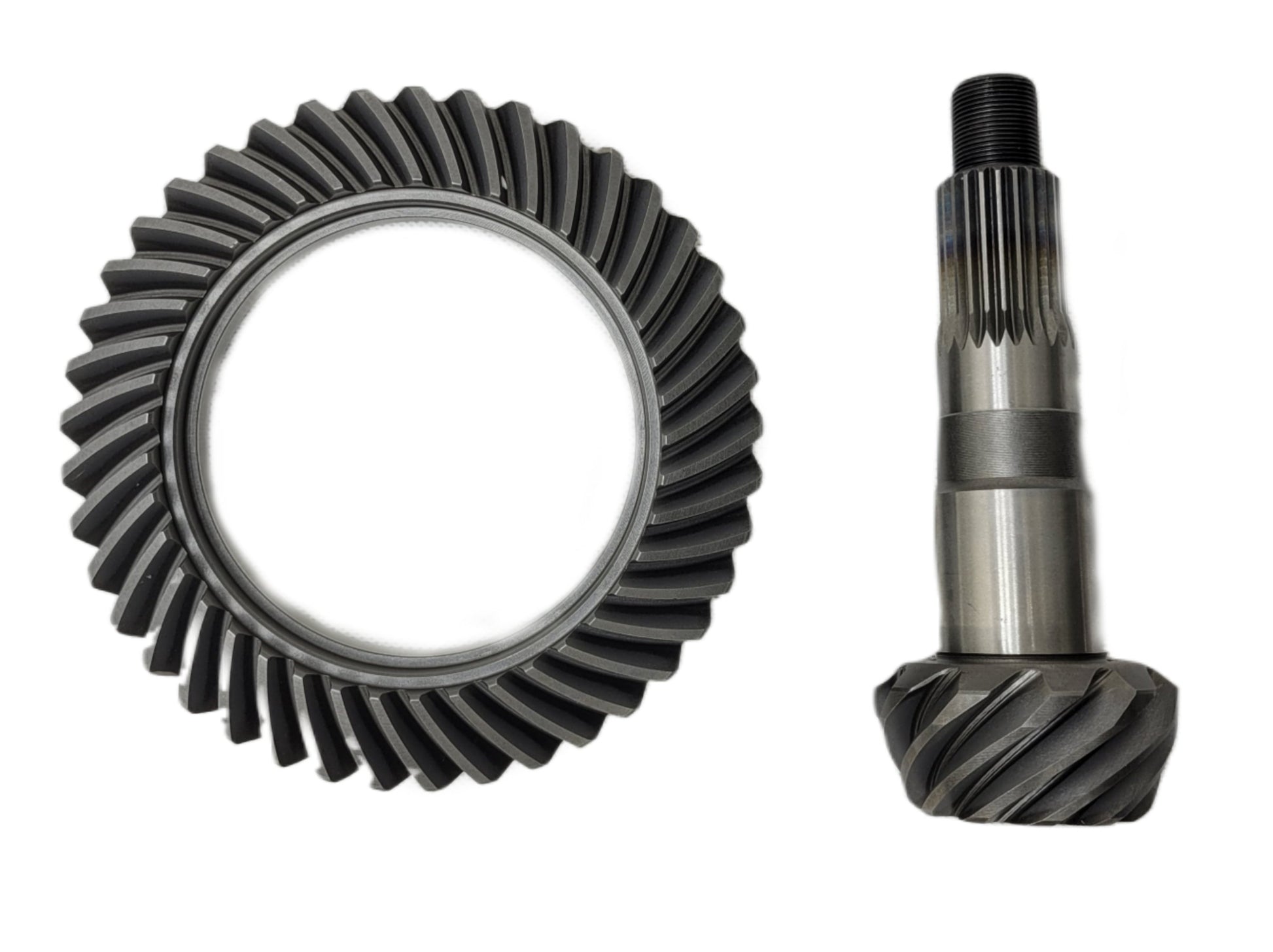

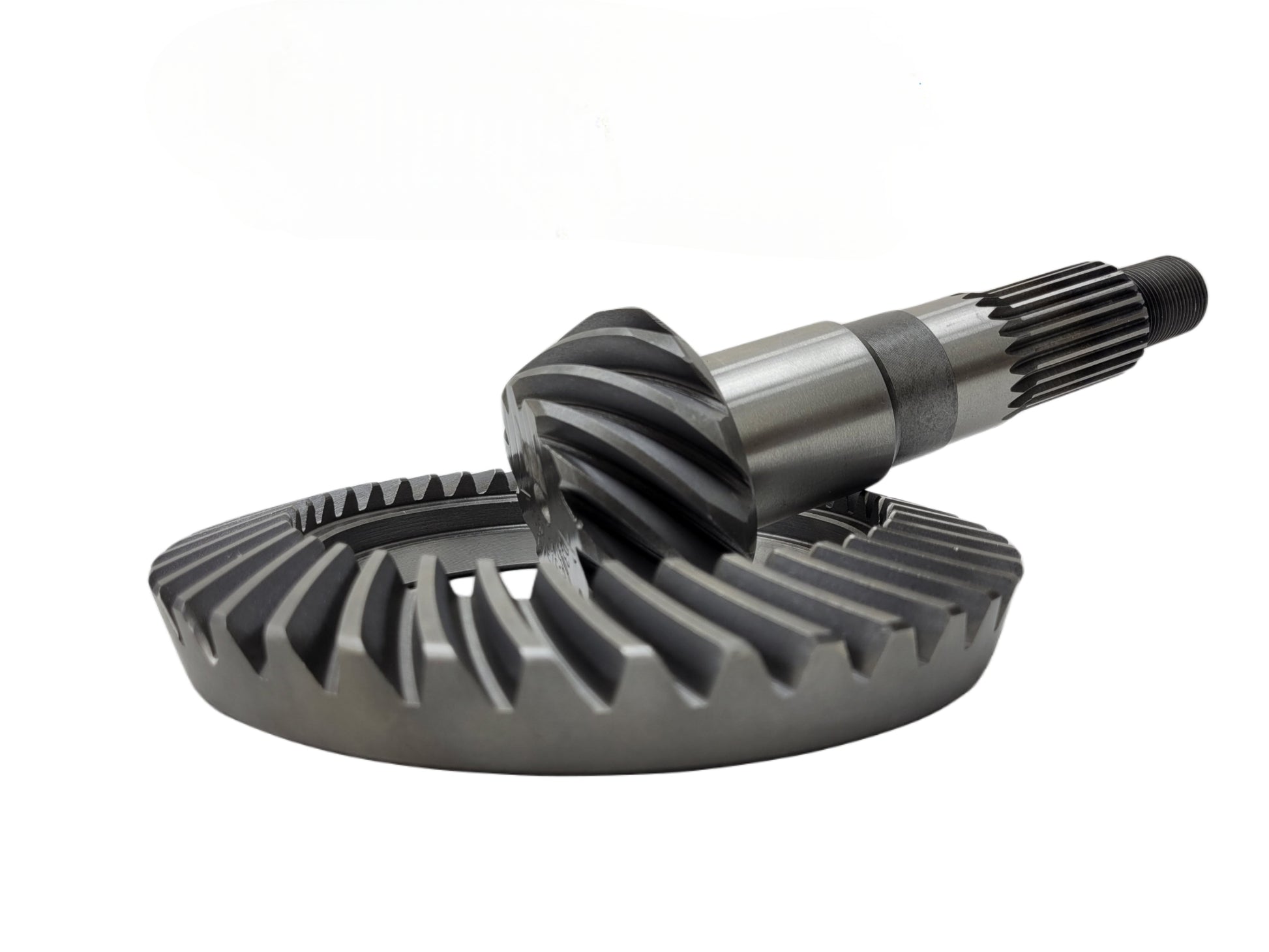

AMR Ring & Pinion Front Dana 30 JK Non Rubicon 3.73 For Jeep Wrangler JK

SKU: JK0209-117

Dhs. 490.00 (Excluding VAT)

AMR strives to provide the highest quality differential components available. We take the steps necessary to ensure our parts are dependable. Our product range is continually growing to meet the needs of consumers for new ratios and applications. They are precision machined using computer controlled processes, heat treated, CNC triple-lapped and Rockwell tested for hardness. These extra steps ensure excellent fitment, ideal contact pattern and smooth, quiet operation.

Details:

Differential Case Design Type:

Dana 30 FRONT

Ring and Pinion Ratio:

3.73:1

Cover Bolts:

10

Ring Gear Bolts:

10

Pinion Spline Count:

26

Carrier Series:

4

Ring Gear Rotation:

Reverse

Ring Gear Teeth:

41

Pinion Gear Teeth:

11

Ring Gear Diameter (in.):

7.200 in.

Pinion Shaft Diameter (in.):

1.625 in.

Compatible Make / Model

Jeep Wrangler (2007-2017)

New Gear Break-In Guidelines

All new gear sets require a break-in period to prevent overheating damage. Overloading or Overheating will break down the gear oil, which will cause the ring and pinion to fail.

Avoid heavy accelerating during the break in process
Keep the vehicle under 60 MPH for the first 100 miles
Drive 15 to 20 miles, stop let differential cool before proceeding
Drive at least 500 miles before towing. First towing should be less than 15 miles, then let cool before proceeding
Change Gear Oil after the 500 mile break-in, this removes metal particles and phosphate coating from the gear set during the break-in period.
Improper Break-in can be determined through Inspection and wil Void Warranty Claims

Gear Oil
Recommended Gear Oil is an 80W-90/85W-140, Non-Synthetic, GL5 grade or Higher, Name Brand Oil.

Compatible Differentials

Dana 30 Front, JK Non Rubicon

Limited Manufacturer Warranty Only (After Installation ,1 week testing Period for report any Issues)

Part No: 56201028
