ARB Twin High Performance Portable Air Compressor Kit

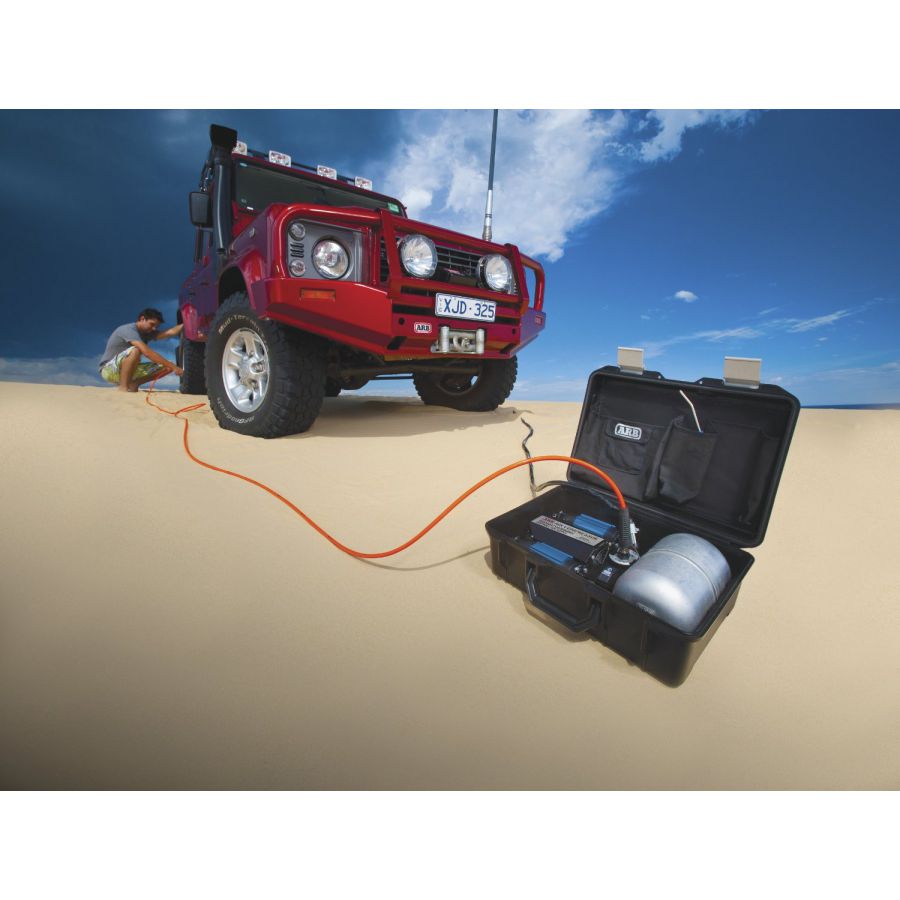

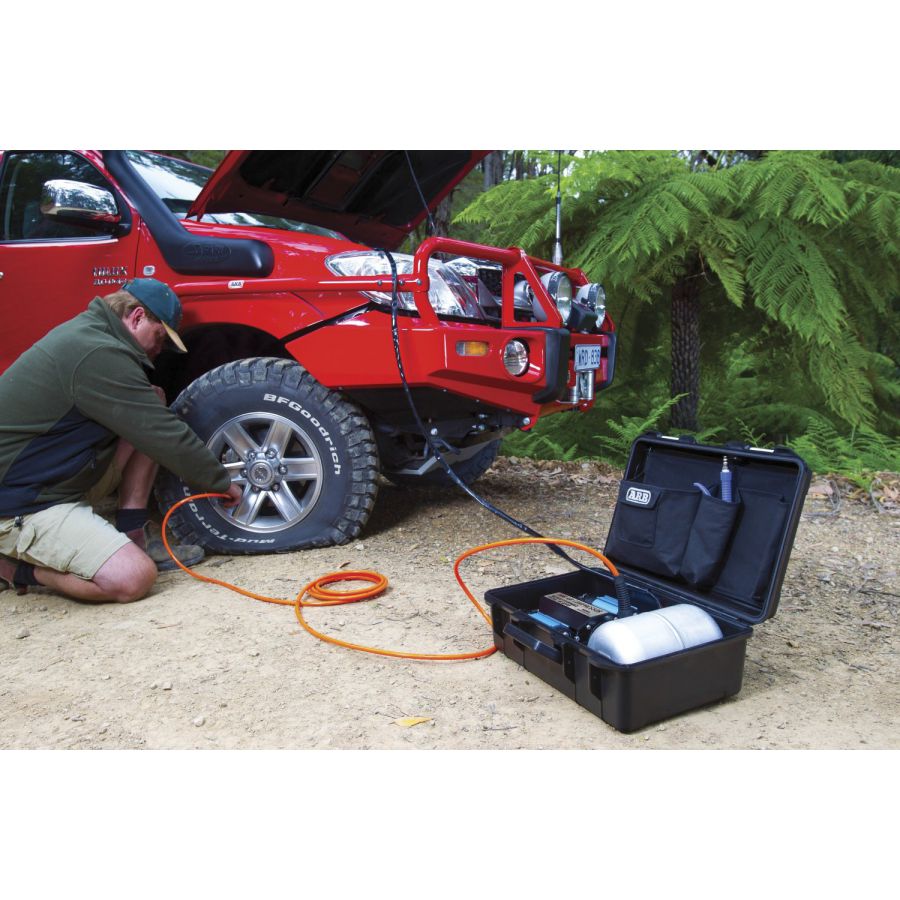

The ARB  Twin High Performance Portable Air Compressor Kit [CKMTP12] is a compact sized yet high performance compressed air source that is intended for rapid inflation of large tyres and operation of most air powered tools rated up to 85LPM[3CFM] @600kPa [90PSI]

The ARB Twin High Performance Portable Air Compressor Kit [CKMTP12] is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.

FEATURES:

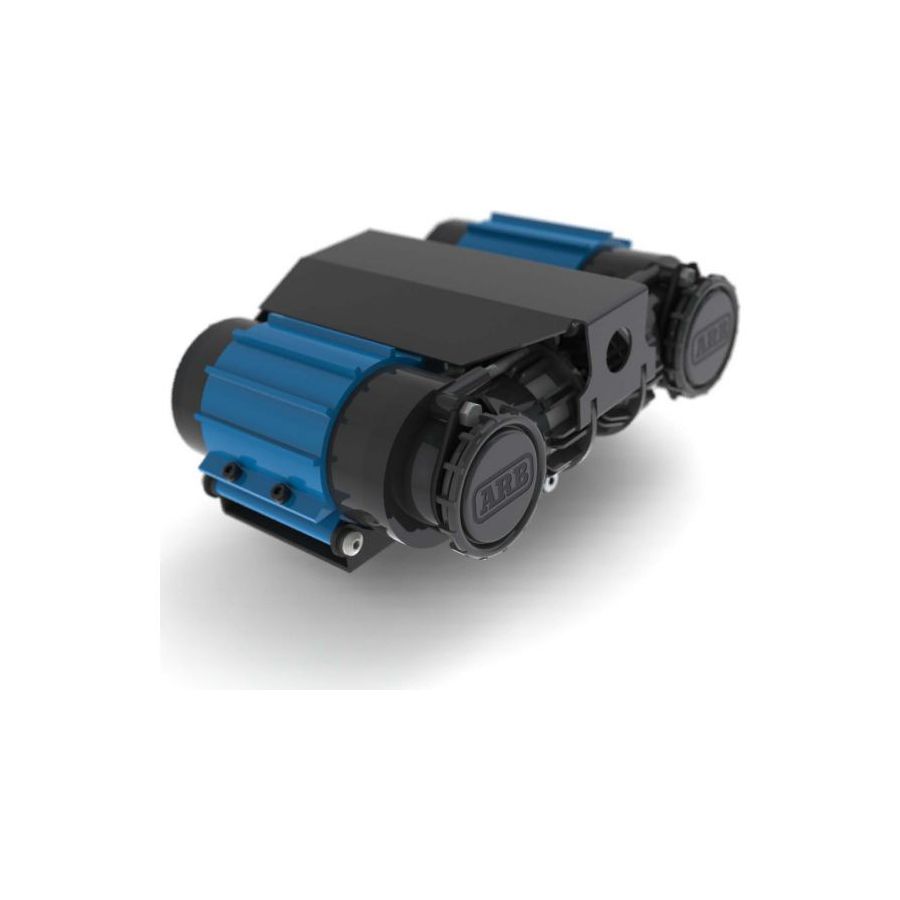

• Ultra compact twin motor, dual cylinder design makes this the highest flowing portable compressor of its size on the market at 174LPM[6.16CFM]
• Integrated aluminum air tank and pressure switch regulates pressure between 930kPa [135PSI] and 1030kPa [150PSI] which is suited to most air powered tools.

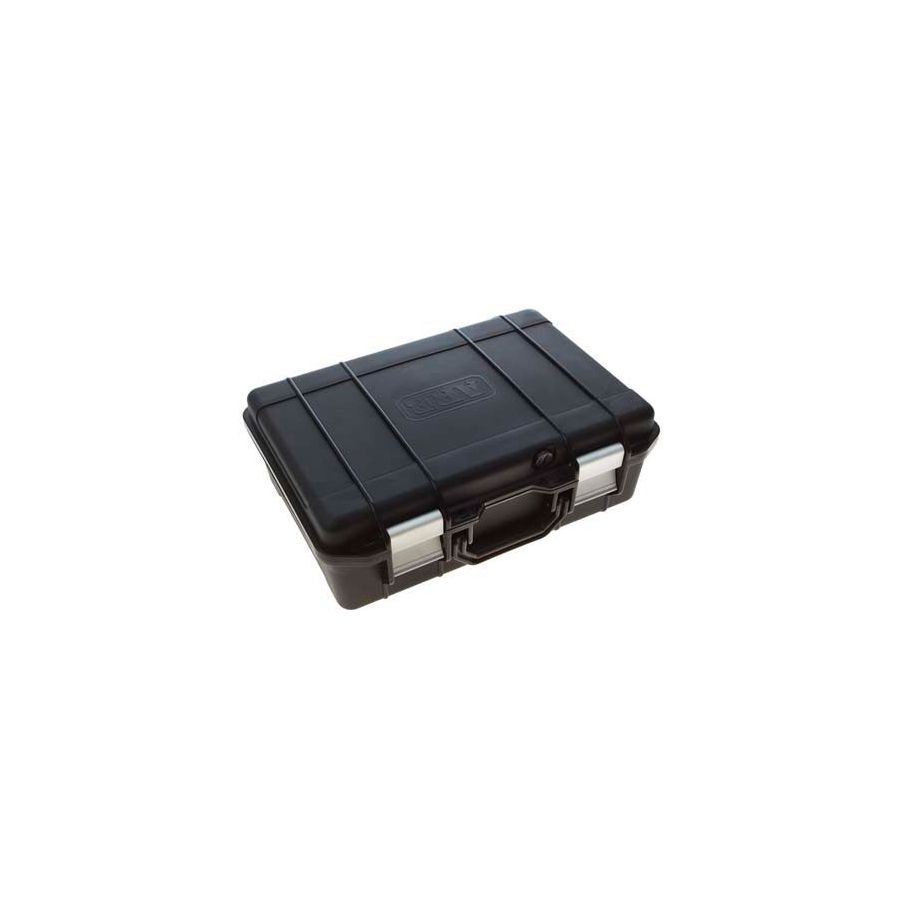

• Mounted in a waterproof carry case constructed from a durable impact resistant polymer. The carry case has convenient compartments for storing the air hose and other compressor accessories.
• Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions).

ADDITIONAL FEATURES:

• Anti-vibration / sound deadening is integrated into the mount.
• Engineered, built and individually dyno-tested in Australia from local and imported components.
• Fully serviceable with all replacement parts available.
• Constructed primarily of light weight, high strength engineering grade materials, including military and aerospace standard components.
• Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life.
• Built with sealed components for moisture and dust resistance.
• Motors are water sealed, 100% ball bearing equipped (i.e., no bushings used), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
• Compressor pistons are equipped with high shock rated roller bearing.
• High density and high flow washable sintered bronze air filter element.
• Motors are thermal cut-out protected against damage caused by extreme temperature use.
• Pressure switch and relay equipped electrical system prevents run-on when not filling, or any damage to compressor or hoses as a result of the pressure generated from a kinked air line.
• Illuminated isolating switch is easy to see at night, and protects the user from hazardous sparking when connecting the alligator clips to the battery terminals.
• Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.
• Over-pressure safety valve equipped as a back-up protection from either pressure switch failure, thermal over pressure generated in a hot vehicle (i.e., no need to drain pressure when finished use.), or accidental connection to an external high pressure source.
• CE and C-Tick compliant.

KIT INCLUDES:

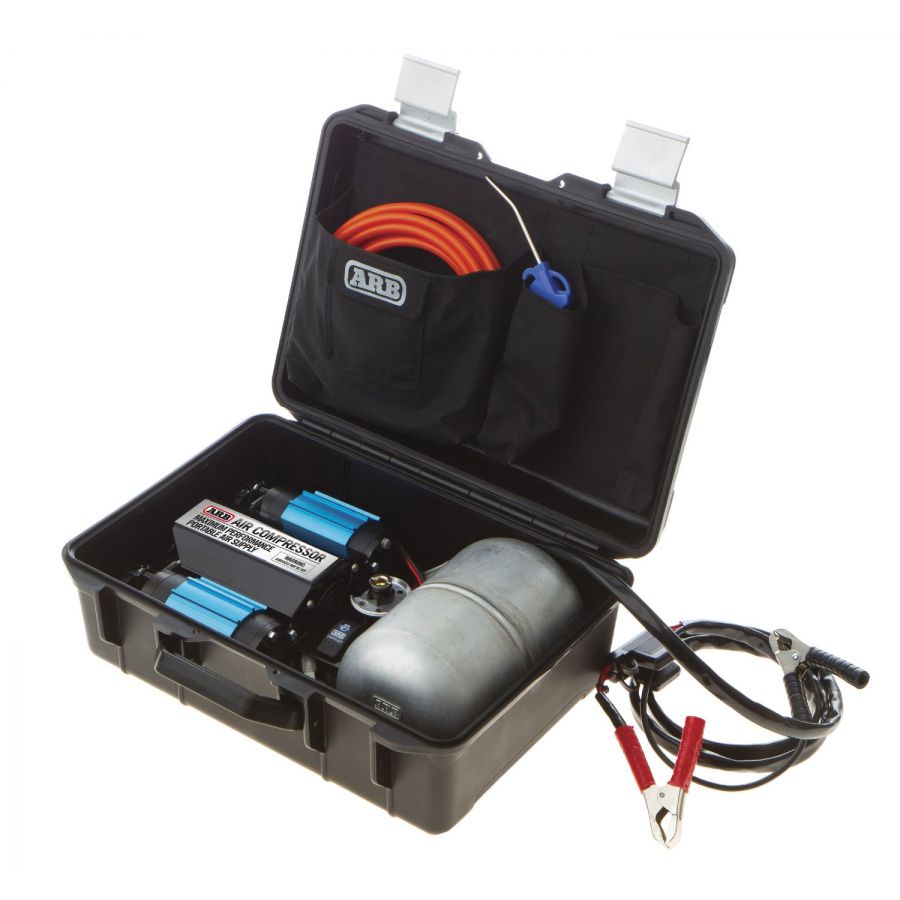

• Fully assembled and performance tested air compressor and air tank mounted into a water proof carry case.
• Canvas compartment for storing air hose and compressor accessories.
• OEM quality illuminated compressor isolating switch.
• High quality wiring loom with automotive grade alligator clamp type battery contacts, and a pressure switch driven automotive relay control circuit.
• Two splash resistant air filters with washable high-flow sintered bronze filter cartridges.
• 6 meter [20 ft] long high quality abrasion and heat resistant air hose with male to female couplings.
• Hose couplings are specially designed corrosion resistant, one-handed (push-lock) quick connect type to suit US industrial standard air fittings
• Air blow gun with US industrial standard male air fitting.
• Inflation accessories kit including high-flow tire filler attachment (US industrial standard) with integral stop-valve, a Schrader valve to US industrial standard adapter, and extra nozzle attachments for inflating items such as sports balls, air mattresses, etc.
• Comprehensive photo illustrated operating instructions.

Specification

Voltage : 12 V DC

Current Draw : No-Load 28.4A

                               Load 50.4A

Air Flow :174.4L/min @0kPa

               131.8L/min @200kPa(29 psi)

Total Weight : 15 KG

Size : 186mm X 478mm X 355mm

Outlet : Hose Coupling, US std Female

Pressure Switch:   Open-1030kPa (150 psi)

                             Closed 930kPa (135psi)

Safety  Valve : Open @>~1240KpA(180 PSI)

1 Year Warranty (Condition Apply)
