Hurricane Heavy Duty Leaf Spring for Ford F150 Raptor 2017-2020

SKU: F0103-107

(Excluding VAT)

HURRICANE Leaf Springs for Ford F150 Raptor (2nd GEN) 2017-2020 provide high-quality, trustworthy service.

These heavy-duty leaf springs provide outstanding ride quality and performance, letting you to keep your vehicle on the road.

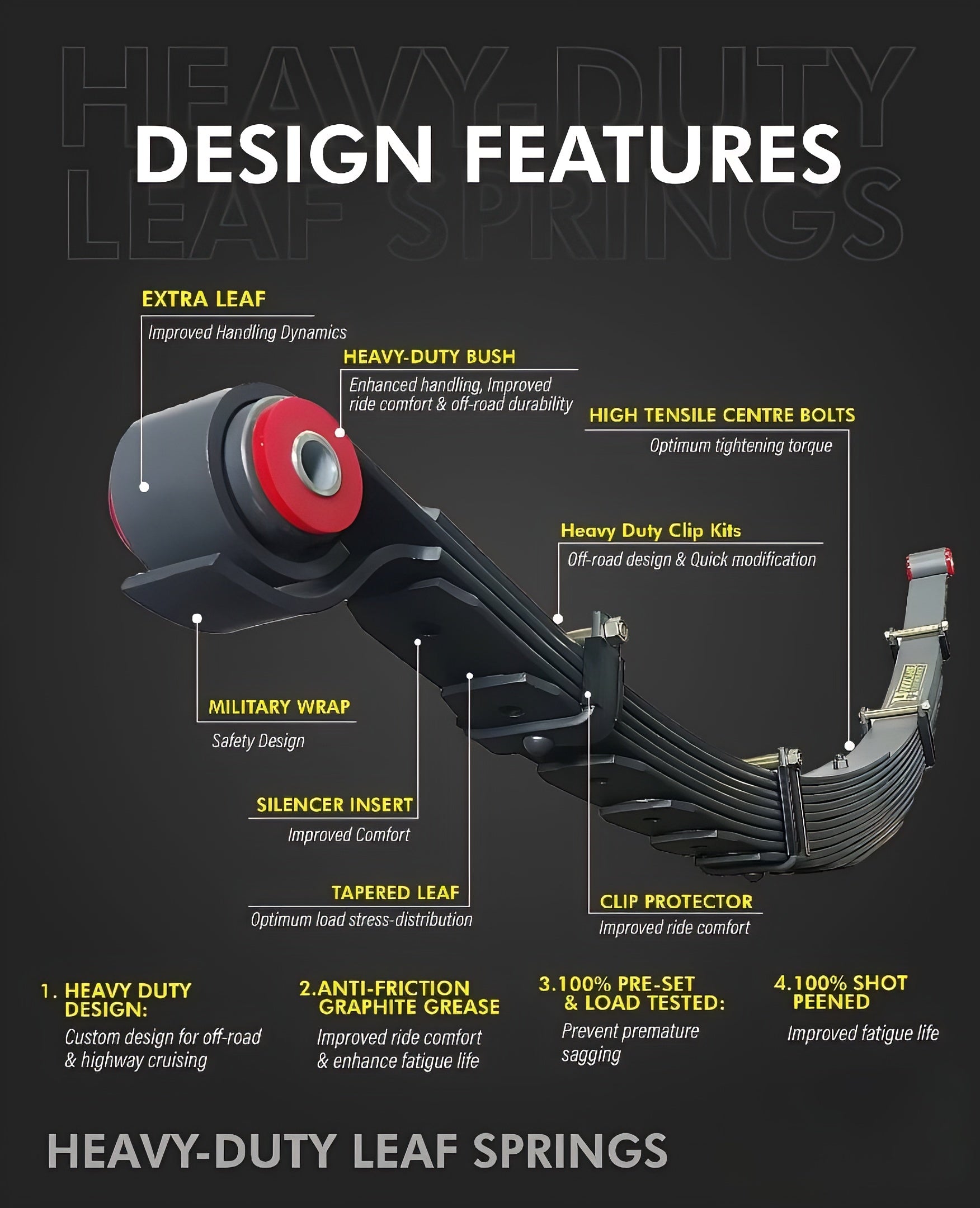

Heavy-Duty Design and Tuning for Improved Street and Off-Road Ride Comfort.
Designed with a Hybrid Progressive Spring Rate for Better Handling Dynamics.
Approximately +2" in lift height depending on vehicle model.
Pre-set, load tested, and 100% shot peened.
Alloy Springs Steel of the Highest Grade.
3 layer surface coating that has been baked.

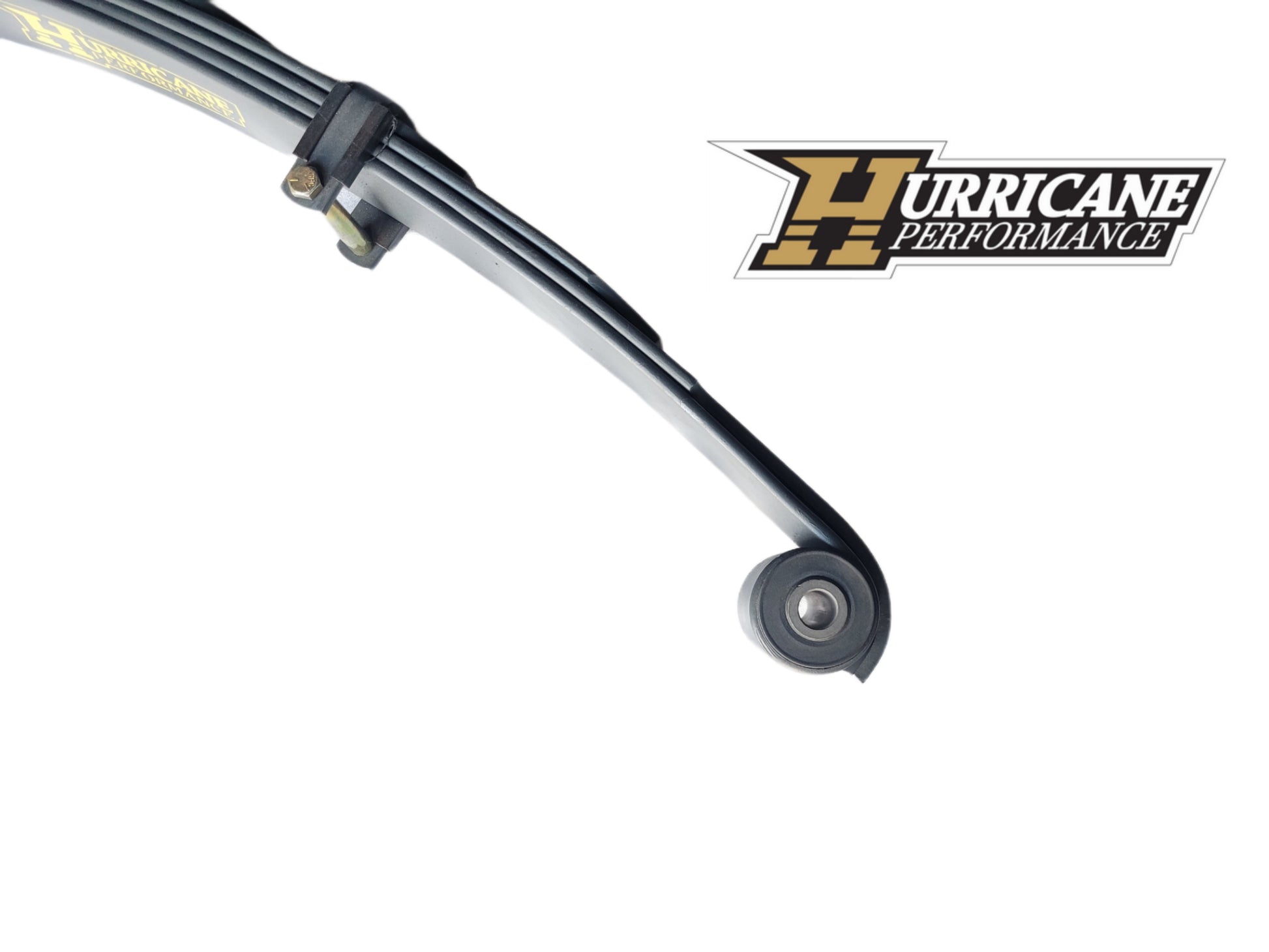

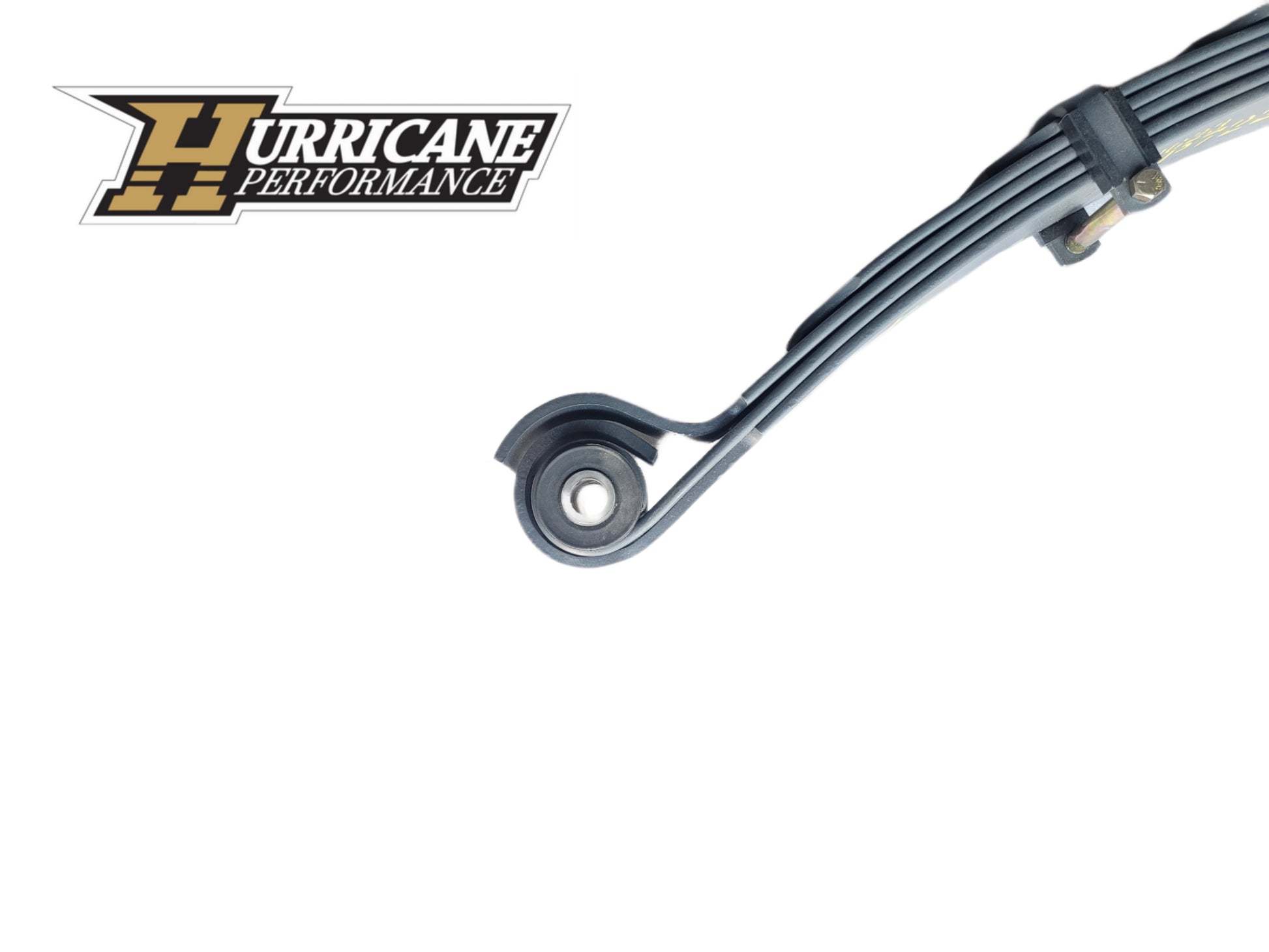

For a longer-lasting bushing, a seamless bushing was installed on the leaf spring eye.
For improved ride comfort, use heavy-duty, custom-designed silencer liners.

The mechanical properties of Hurricane Spring Steels are outlined in the following table.

Tensile strength	Conditions to yield strength	Elongation	Reduction of area	Hardness (Hot Rolled)	Hardness (Cold Drawn)
σb (MPa)：≥1225(125)	σ0.2 (MPa)：≥1080(110)	δ5 (%)：≥9	ψ (%)：≥20	≤321HB;

MODEL	YEAR	LOAD CONSTANT (KG)	LIFTED HEIGHT	SPRING RATE (kgf/mm)-KM	FREE CAMBER HEIGHT
F150 RAPTOR	2017-20	0	+1.5"	2.66	300±5

This steels, Highlight the advantage is good hardenability, another hot working performance, comprehensive mechanical properties,

Decarburization resistance is also good big cross section of various important spring,

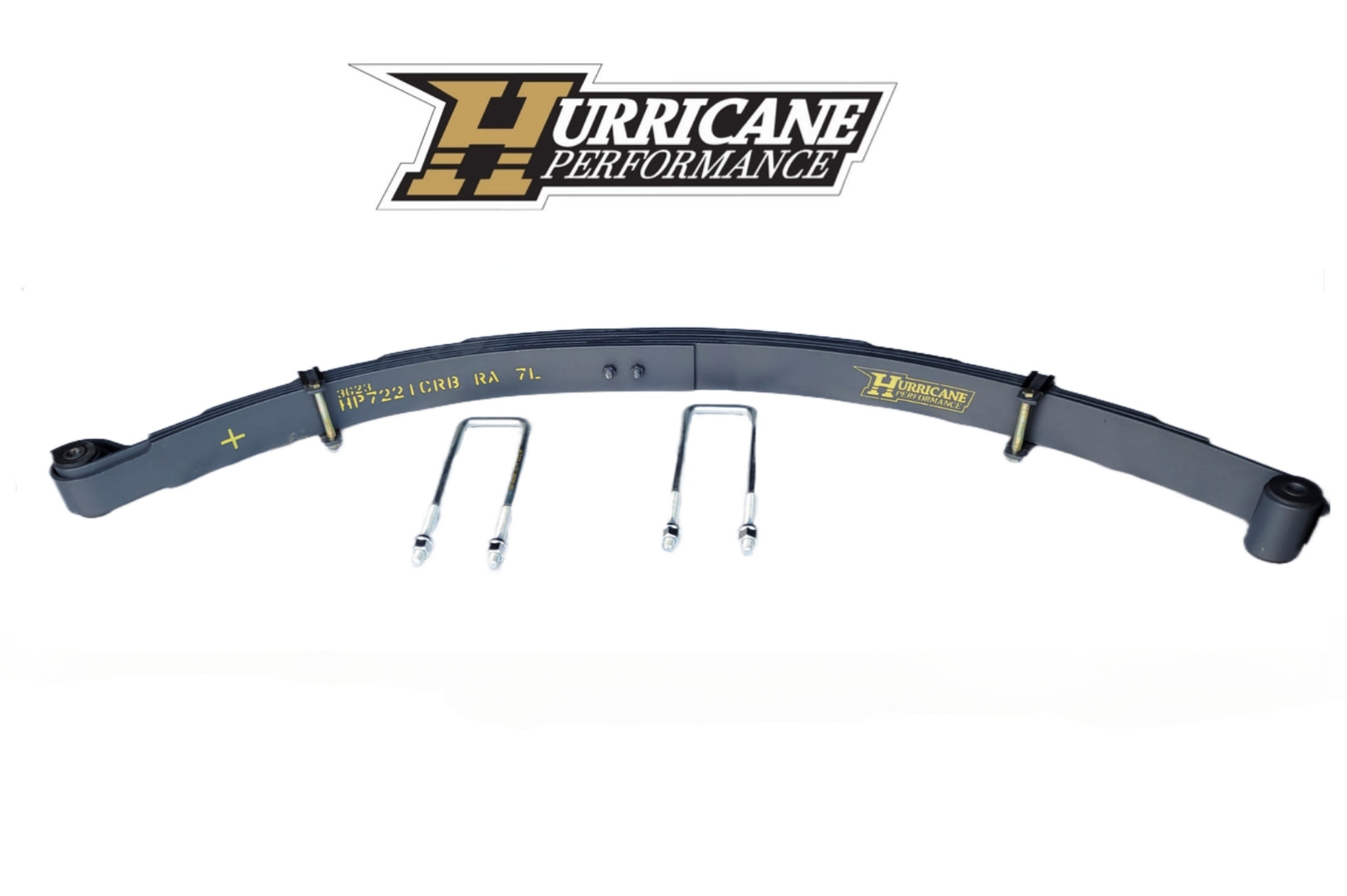

Manufacture Part Number: HP7221CRB-RA6L

Price Per Piece

1 Year Warranty on Manufacture defects
